MULTI SPINDLE HEADS

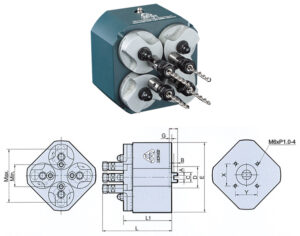

* Multi-heads are ideally suited to general and small batch production runs of components having equally spaced holes where single spindle set-ups prove uneconomic * This 4 spindle head has a range from 18 - 100mm * Capacity is 6.0mm

* Multi-heads are ideally suited to general and small batch production runs of components having equally spaced holes where single spindle set-ups prove uneconomic * This 2 spindle head has a range from 13.5 - 73.5mm * Flange mount to machine * Drive dog options: MT 1,2,3,4 * Reversable * Coller chuck with ER8 collets * Suitable for tapping operations * Other configerations available on request

* Multi-heads are ideally suited to general and small batch production runs of components having equally spaced holes where single spindle set-ups prove uneconomic * This 2 spindle head has a range from 13.5 - 73.5mm * Flange mount to machine * Drive dog options: MT 1,2,3,4 * Reversable * Suitable for tapping operations * Other configerations available on request

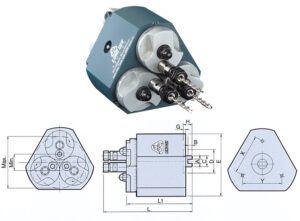

* This is a 3 spindle (circular) boring head * Range is from 14.0 - 88mm * Flange mount to machine with opional drive tapers of MT 1, 2,3,4 tapers * Collet fixing for drill bits * Other configerations available

* This is a 3 spindle (circular) boring head * Range is from 36.0 - 200mm * Flange mount to machine with opional drive tapers of MT 1, 2,3,4 tapers * Collet fixing for drill bits * Other configerations available

* This is a 3 spindle (circular) boring head * Range is from 22.0 - 82mm * Flange mount to machine with opional drive tapers of MT 1, 2,3,4 tapers * Collet fixing for drill bits * Other configerations available on request

* This collet is to suit the T-1231 Multi spindle head *

* This collet is to suit the T-1231 Multi spindle head *

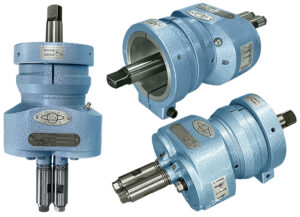

* Multiple adjustable drilling head with minimal effort when changing centres * Suitable for drilling and tapping * Reversable * Graduated for ease of setting * Drill capacity 1.0 - 14.0mm * Flange mount to machine * Drive taper option: MT2,3,4 * Other configerations available on request

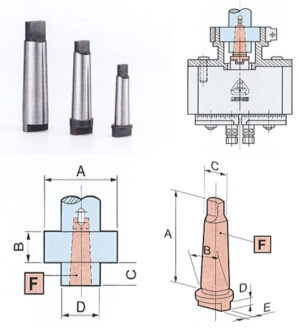

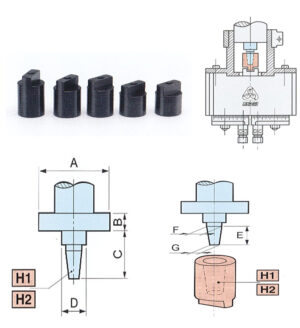

* This is the mounting diagram when fitting to a drilling machine with Jacobs Taper spindle

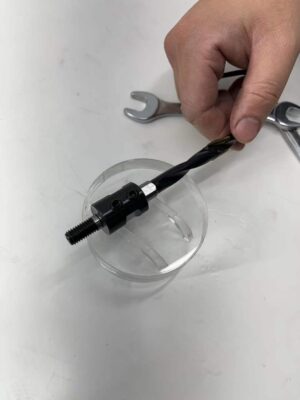

* This is a threaded spindle adaptor is to suit the Long Ger multi spindle head..

* This is a threaded spindle adaptor is to suit the Long Ger multi spindle head..
