5C INDEXER

* The Phase II 5C Spin Index is a multi-purpose indexing fixture * Designed to extend the work capabilities of milling machines surface grinders and drill presses * Accepts 5C collets to 1-1/8” or metric 32.0mm capacity (available in round or square ) * Indexing plate has a 36 hole pattern for direct indexing in 10 steps, graduated in 5° increments * Vernier is calibrated to 1° settings * Hardened and ground spindle with lock for accuracy under load travels 2-1/16” for fflute grinding.

* This tailstock can work with the 5C Spin Indexer for holding the workpiece between centres * Parallelism of center line of spindle to base surface 0.02mm 0.0008” * Radial runout of spindle outer taper 0.010mm - 0.0004" *

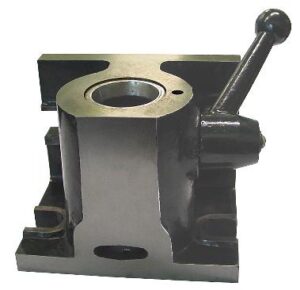

A quick clamping devise for workpieces passing through the 5C collets.Can be used both horizontal and vertical.

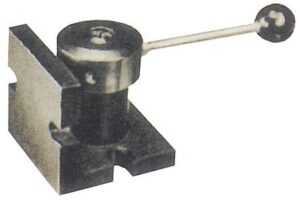

* This fixture enables machining products to be held in a wide variety of 5c collets round hexagonal or square * Round 1/8-1 3mm-25mm *
