TURNING TOOLS-INDEXABLE

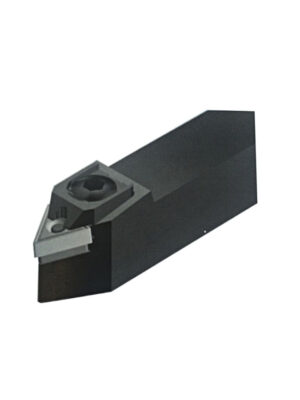

S Type with Screw Lock Clamping System For ISO Type DC Inserts. Mulitpurpose profiling toolholder equipped with rhombic positive insert (angle 55 degree). The centre screw ensures good rigidity and chip flow. Applications: External turning and profiling toolholder for general applications, roughing, semi finishing and finishing.

Characteristics: * Multipurpose profiling toolholder equipped with rhombic positive insert (angle 55 degrees) * The centre screw ensures good rigidity and chip flow * Applications: * External turning and profiling toolholder for general applications, roughing, semi-finishing and finishing * Negative insertss toolholders Ref. PDNN *

Characteristics: * Toolholder for face turning applications equipped with triangular positive inserts and strong cutting edges * The top clamp ensures good rigidity and stability* Applications: * Face turning toolholder for all kind of materials * The workpiece should be stable * For interrupted cut choose toolholder PTFN *

Characteristics: * Multipurpose toolholder equipped with rhombic negative double sided insert (angle 80 Degrees) with strong cutting edge * The centre pin and top clamp ensure good rigidity and stability in roughing applications * Applications: * External turning toolholder for general applications, roughing, semi-roughing, and finishing * Specially recommended for cermet, ceramic and K10, P10 grade inserts * * For low powered machines and small pieces choose toolholder Ref. SCLC *

Characteristics: * Multipurpose toolholder equipped with rhombic negative double side insert (angle 80 Degrees) with strong cutting edge. The centre pin and top clamp ensure good rigidity and stability in roughing applications.* Applications: * External turning toolholder for general applications, roughing, semi-finishing and finishing. Not suitable for cermet, ceramic and K10, P10 grade inserts.* For low powered machines and small pieces choose toolholder Ref SCLC

Characteristics: * Profiling toolholder with triangular negative double side insert (angle 60 Degrees) with strong cutting edge * The clamp fixing ensures good rigidity and stability in roughing applications* Applications: * Profiling toolholder for general applications, roughing semi-finishing and finishing *

Characteristics: * Profiling toolholder with triangular negative double side insert (angle 60 Degrees) with strong cutting edge * The clamp fixing ensures good rigidity and stability in roughing applications* Applications: * Profiling toolholder for general applications, roughing semi-finishing and finishing *

Characteristics: * Profiling toolholder with triangular negative double side insert (angle 60 Degrees) with strong cutting edge * The clamp fixing ensures good rigidity and stability in roughing applications* Applications: * Profiling toolholder for general applications, roughing semi-finishing and finishing *

Characteristics: * Turning and profiling toolholder equipped with triangular negative double side insert with strong cutting edge * The centre pin and top clamp ensure good rigidity and stability in roughing applications * Applications: * External turning and profiling toolholder for general applications, roughing, semi roughing, and finishing * Specially recommended for cermet, ceramic and K10, P10 grade inserts *

Characteristics: * Turning and profiling toolholder equipped with triangular negative double side insert with strong cutting edge * The centre pin and top clamp ensure good rigidity and stability in roughing applications * Applications * External turning and profiling toolholder for general applications, roughing, semi roughing, and finishing * Specially recommended for cermet, ceramic and K10, P10 grade inserts *

Characteristic: * Multi purpose holder with trigon neg. double sided insert with strong cutting edge. The centre pin and top clamp ensure good rigidity and stability in roughing applications. Suitable general applications roughing to finishing * Specially recommended for cermet, ceramic and K10, P10 grade inserts *

Characteristic: * Multi purpose holder with trigon neg. double sided insert with strong cutting edge. The centre pin and top clamp ensure good rigidity and stability in roughing applications. Suitable general applications roughing to finishing. Not suitable ceramic style K10 and P10 grade inserts.

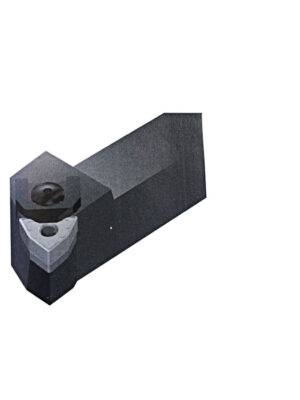

Characteristics: * Multipurpose toolholder equipped with trigon negative double side insert (angle 80 Degrees) with strong cutting edge * The centre pin and top clamp ensure good rigidity and stability in roughing applications * Applications: * External turning toolholder for general applications, roughing, semi roughing, semi-finishing and finishing * Not suitable for cermet, ceramic and K10, P10 grade inserts ** This is a 95deg right hand lathe toolholder - takes WNMG0804 inserts ** Right hand lathe tool holder - tip supplied *

Characteristics: * Multipurpose toolholder equipped with trigon negative double side insert (angle 80 Degrees) with strong cutting edge * The centre pin and top clamp ensure good rigidity and stability in roughing applications * Applications: * External turning toolholder for general applications, roughing, semi roughing, semi-finishing and finishing * Not suitable for cermet, ceramic and K10, P10 grade inserts ** This is a 95deg right hand lathe toolholder - takes WNMG0804 inserts ** Right hand lathe tool holder - tip supplied *

Characteristics: * Profiling multipurpose turning toolholder equipped with round negative insert with strong cutting edge * The lever lock ensures good rigidity and chip flow in roughing applications * Applications: * Profiling multipurpose turning toolholder for general applications, roughing, semi-finishing and finishing *
