BRAND | LGF Xeron |
---|---|
TYPE | Auto Cut Off Saw |
BLADE SIZE | 500mm |
CLAMPING | Air Clamping |
MOTOR | 3Hp |
VOLTAGE | 3 Phase 440V |
CUTTING CAPACITY | |
SPINDLE SIZE | 30.0mm |
WEIGHT NETT / GROSS | 220.00/240.00kg |
VOLUME | 1.944cm |

LGF: GAMMA SWING DIGIT PLUS
$105,000.00

MITRE SAW; DUCS500 DIGITAL UP CUTTING
$19,000.00
Availability : Enquire Now
Price per Unit
ex-gst
$20,293.00Inc-gst

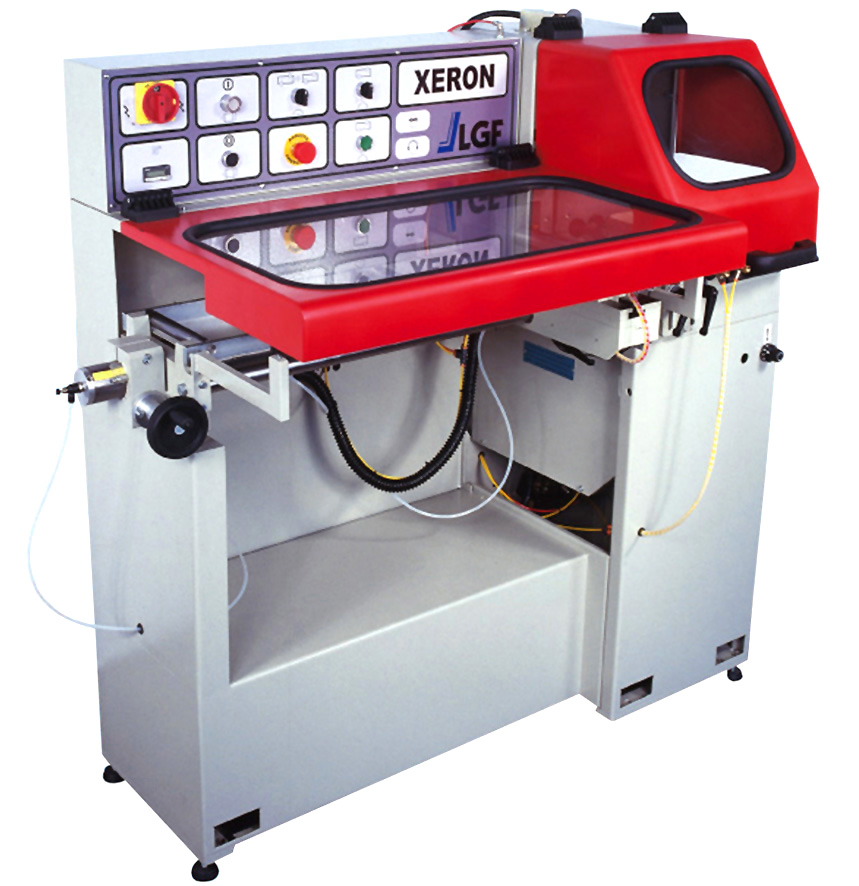

$23,336.95AUTO CUT OFF SAW: XERON
Description
SKU : ALU303200
Price per Unit
$20,293.00 (Exc GST)
$23,336.95 (Inc GST)
FEATURES:
* The LGF XERON is a automatic cut off saw with bar feeder.
* Pendulum movement of the sawing group.
* Pneumatic external adjustment of the saw blade feeding.
* Bar feeding by means of paneumatic cylinder.
* Manual setting of cutting length by means of hand wheel from 0 to 660mm complete with metric scale and magnifying glass.
* Fully automatic cutting procedure.
* Full protection safety covers with manual closing.
Weight | 240 kg |
---|---|
Dimensions | 1.8 × 0.9 × 1.2 cm |
Specifications
Description
Reviews (0)
Be the first to review “AUTO CUT OFF SAW: XERON” Cancel reply
Shipping & Delivery
Related products
MITRE SAW: LGF FRIDA 400MM Blade Manual Down
SKU:
ALU301100
$9,499.00
* High quality Italian machine.
* Cutting off with manual downstroke of the blade.
* Rotating table between 80° and -80°, easy setting to any angle.
* Tilting head from 45° to -45° using mechanical blocking system.
* Horizontal pneumatic clamping system with rubber pads.
* Spray mist lubrication.
* Air filter and air gun.
CUT OFF SAW: LGF ASTRA AUTO UP CUT
SKU:
ALU301200
$9,900.00
* High quality Italian machine.
* Rising blade with an easy and light manual lever action.
* Rotating working bench, mechanical locking devices at 90°/45°/-45°.
* Tilting blade can cut at any angle between 80° and -80°, by means of mechanical stop on the rotating bench.
* Can perform ripping operations from 0 to 60 mm by means of rear movable fence.
* Full safety guarding around the work table.
* Vertical pneumatic clamping system with rubber pads.
* Spray mist lubrication.
* Air filter and air gun.
MITRE SAW: LGF PENTA MITRE
SKU:
ALU301350
$24,500.00
* High quality Italian machine.
* Rising blade with adjustable feeding.
* Rotating working bench, mechanical locking devices at 90°/45°/-45°, and pneumatic brakes for intermediate degrees.
* Tilting blade can cut at any angle between 80° and -80°.
* Digital display shows the intermediate degree cuts.
* Complete with trimming fence for performing trim cuts.
* Full safety guarding around the work table.
* Horizontal pneumatic clamping system with rubber pads.
* Can be fitted with blades from Ø 500mm - Ø 530m.
* Spray mist lubrication.
DOUBLE MITRE SAW: LGF ZETA
SKU:
ALU302000
$33,000.00
* This LGF ZETA double mitre saw combination is ideal for the fabrication of aluminium joinery.
* Both saw heads are capable of compound mitres.
* Each table has horizontal air clamping.
* Central controls make the pneumatic cutting action simple and hands free.
* Equipped with auto lubrication for smooth cutting and clean finish.
* Comes with central workpiece support.
DOUBLE MITRE SAW: LGF DELTA
SKU:
ALU302100
$33,000.00
* This LGF Delta double mitre saw combination is ideal for the fabrication of aluminium joinery.
* Both saw heads are capable of compound mitres.
* Each table has horizontal air clamping.
* Equipped with electronic positioner with up to 99 memory allocations.
* With monochrome screen and industrial integrated keyboard.
* Automatic electronic movement of the right head.
* Pneumatic tilting heads from 90° to +45°.
* USB port to save/upload cutting lists and programmes.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
LGF: GAMMA SWING DIGIT PLUS
SKU:
ALU302210
$105,000.00
* Equipped with electronic positioner.
* With 10” colour screen and touchscreen system.
* Radial sliding of the saw carriage.
* Pneumatic tilting heads from 90° to +45°.
* USB port to save/upload cutting lists and programmes.
* Available in 4mt or 5mt bed length.
* Available with a 500mm, 530mm or 550mm blade.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
MITRE SAW; SHCS500 UP CUTTING
SKU:
ALU305000
$13,200.00
