| BRAND | OMC |
|---|---|
| TYPE | Auto Cut Off Saw |
| BLADE SIZE | 550mm |
| CLAMPING | Pneumatic clamping |
| MOTOR | 3Hp |
| VOLTAGE | 380 Volts |
| CUTTING CAPACITY 90 DEG | 195 x 320mm |
| CUTTING CAPACITY 45 DEG | 195 x 225mm |
| CUTTING CAPACITY 22.5 DEG | 195 x 110mm |
| WEIGHT NETT / GROSS | 400kg |
| VOLUME | 2.5199cm |
| PACKING DIMENTIONS | 1070 x 1570 x 1500 mm |
Description
SKU : ALU301305
Price per Unit
$24,000.00 (Exc GST)
$27,600.00 (Inc GST)
FEATURES:

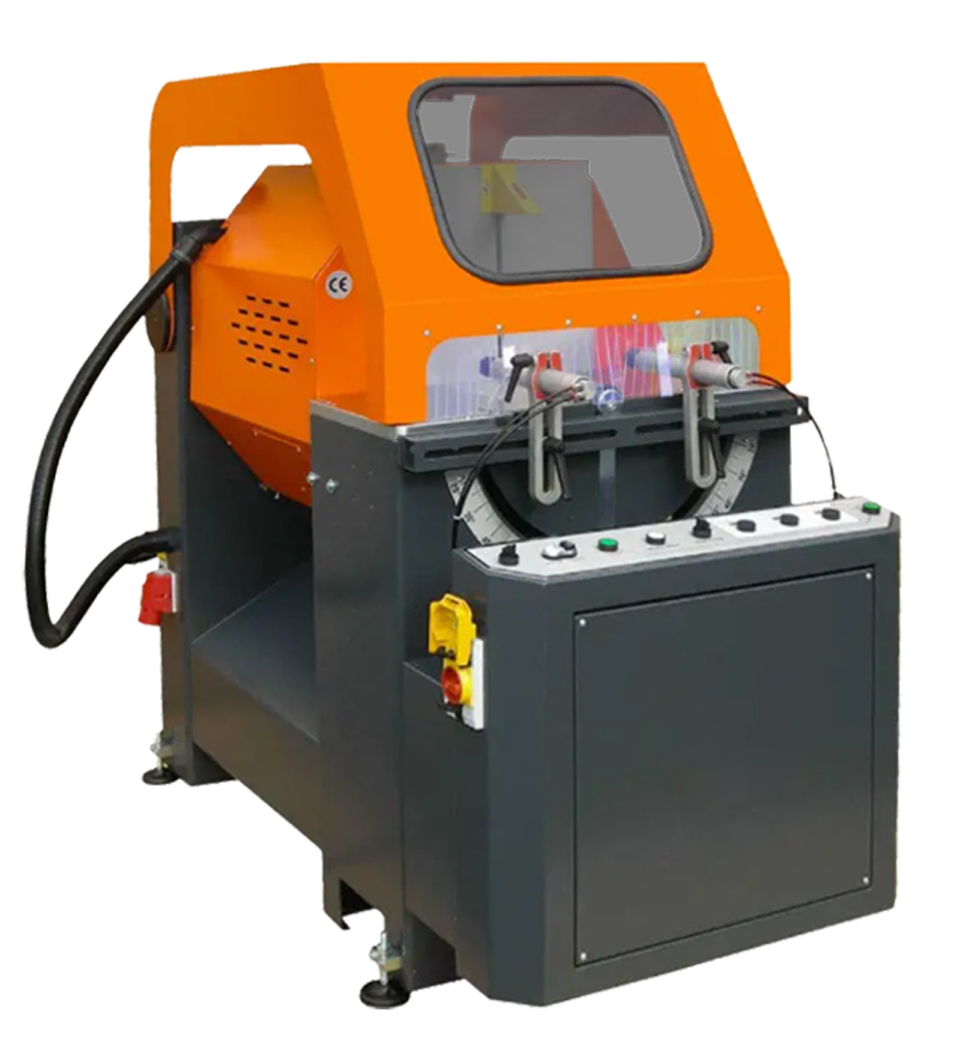

** This OMC automatic cut off saw offers the utmost in cutting safety and speed.
** Fitted with auto pneumatic clamping and mist spray unit for a clean cutting cycle.
** Possibility of performing all angles from 20° left to 20° right.
** Fully enclosed working area.
** It is fitted with blades Ø 550mm.
| Weight | 400 kg |
|---|---|
| Dimensions | 1.07 × 1.57 × 1.5 cm |
