MODEL | MJN 550N |
---|---|
CUTTING WIDTH | 535mm |
MAX THICKNESS | 300mm |
TABLE SIZE | 700 X 485mm |
TABLE TILT | 0 To 20 Degree |
BLADE SIZE | 3855 x 0.62 x 10-40 |
BLADE SPEED | 15M/Sec |
MOTOR | 3000 Watts |
WEIGHT NETT/GROSS | 310 / 370kg |
VOLUME | 1.1831cm |
PACKING SIZE L X W X H | 2030 x 620 x 940mm |
Description
SKU : BSW964320
Price per Unit
$3,100.00 (Exc GST)
$3,565.00 (Inc GST)
FEATURES:

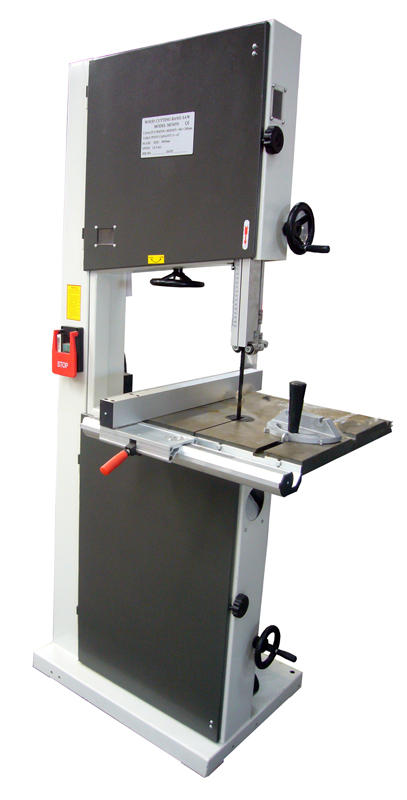

* The MJS550N 22″ bandsaw with new slope shape frame
* Precise and simple adjustemnt of the cutting height by means of a handwheel and rack system
* Smooth and flexible allowing 45 deg tilt the work table
* Fitted with roller bearing blade guides both top and bottom
* Positive locking system for fence which slides freely in the aluminum guide system
Weight | 370 kg |
---|---|
Dimensions | 2.03 × 0.62 × 0.94 cm |
