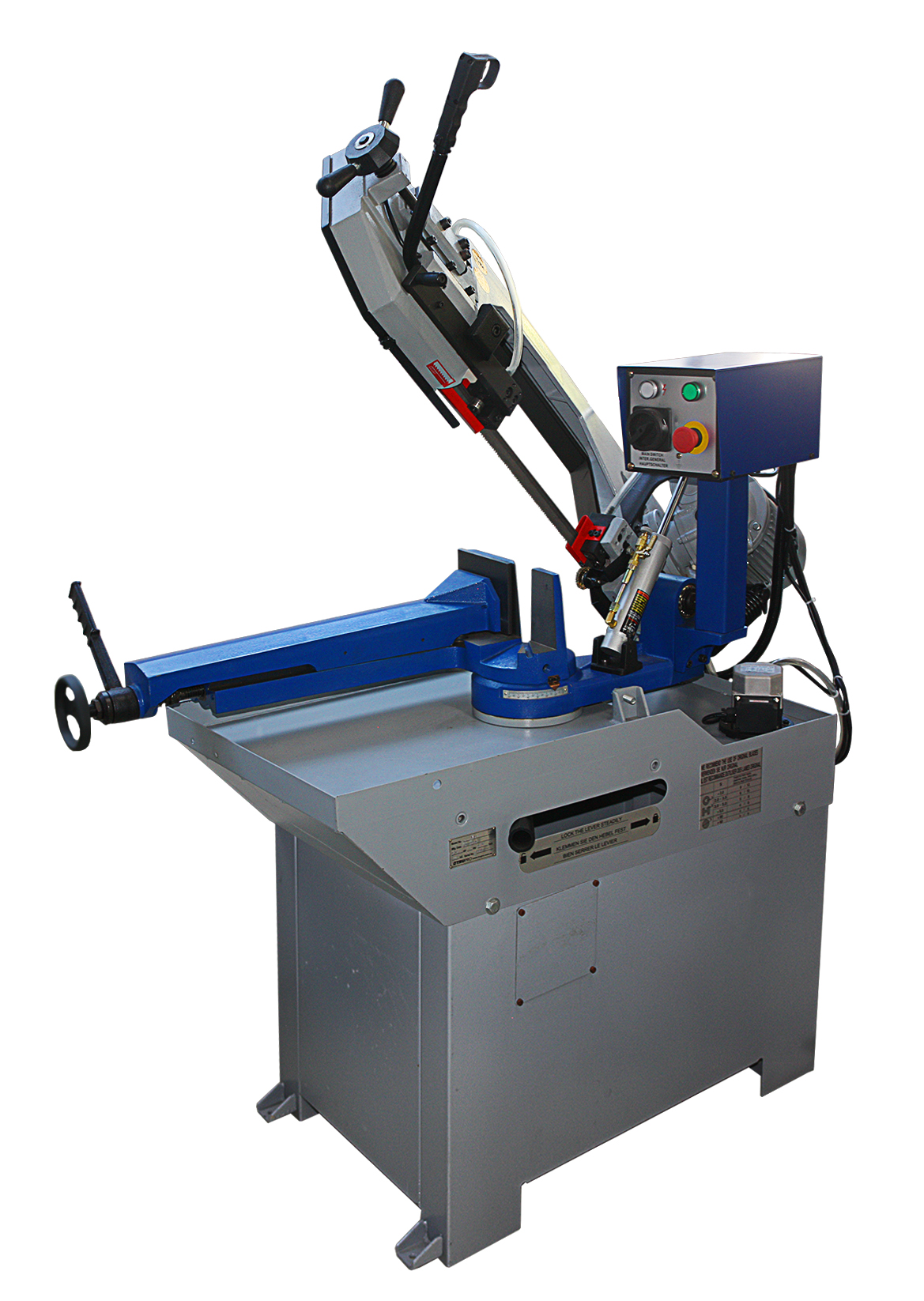

Description | Euro type horizontal bandsaw |
---|---|
Model | BMT-260SL |
Capacity Round 90° (mm) | 227 |
Capacity Rectangular 90° (mm) | 260 x 110 |
Capacity Round 45° (mm) | 150 |
Capacity Rectangular 45° (mm) | 145 x 145 |
Blade Speeds (no.) | 2 |
Blade Speeds (m/min) | 72 & 36 |
Blade Size L x H (mm) | 2,450 x 27 |
Motor (kW) | 1.1 |
Voltage (V) | 415 |
Weight Nett / Gross (kg) | 216 / 250 |
Volume (m³) | 1.5675 |
Packing Size L x W x H (mm) | 1900 x 550 x 1500 |

BANDSAW: BS-460G DUAL MITRE
$12,000.00
Description
SKU : BSH101388
Price per Unit
$3,236.80 (Exc GST)
$3,722.32 (Inc GST)
FEATURES:
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
Weight | 250 kg |
---|---|
Dimensions | 1.9 × 0.55 × 1.5 cm |
Specifications
Description
Reviews (0)
Be the first to review “BANDSAW: BMT-260SL 227M MITRE (TAIWAN)” Cancel reply
Shipping & Delivery
Related products
BANDSAW : G-5027 DUAL MITRE
SKU:
BSH101200
$6,900.00
* Heavy duty semi-automatic dual mitre saw.
* Control box for blade speed, descent rate & coolant.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Trigger type handle.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control to both sides of the cut.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
BANDSAW: CY-270N 225MM 1PH (TAIWAN)
SKU:
BSH101250
$0.00
* European style bandsaw.
* Contol panel located on the front of the machine.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
BANDSAW: CY-260N 225MM 1PH (TAIWAN)
SKU:
BSH101254
$0.00
* European style bandsaw
* Contol panel located on the front of the machine
* Fitted with quick action lock/release vice
* Swivel head adjustment for scaled mitre cutting
* Emergency cut out switch
* Coolant pump for cutting effiency and longer blade life
* Mounted on drip tray with stand assembly
* Hydraulic cylinder to control down feed during the cutting process
BANDSAW: CY-135A 135MM 1PH (TAIWAN)
SKU:
BSH101322
$1,375.00
* Small but quality workshop bandsaw.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-280 DUAL MITRE 2 SPEED 3PH (TAIWAN)
SKU:
BSH101352
$7,200.00
* Heavy duty dual mitre bandsaw with a two speed motor.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: UE-330SSAV 13″ MITRE (TAIWAN)
SKU:
BSH101681
$15,115.00
* Movable control box on swivel arm at a convenient height.
* Adjustable stroke limit switch presets the return height of the bow.
* Mitre cut up to 45° with a swivel head and quick release vice.
* All welded steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Hydraulic vice.
* Made in Taiwan.
BANDSAW: WG-500DSA DUAL MITRE (TAIWAN)
SKU:
BSH101685
$19,900.00
* Taiwanese made semi-automatic dual-mitre bandsaw.
* Comprehensive control panel on telescopic pendant.
* Full length hydraulic vice, with unique sliding design.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Linear bearing on the base of the sliding vice for smooth movement.
* Rack type quick action vice with hydraulic clamping.
* Motor inverter controls the blade speed accurately and efficiently.
* Mobile coolant tray, convnient for when cutting angles.
* Material feeder for detecting cutting height and reducing cycle time.
BANDSAW: BS-280C SEMI- AUTO HORZ
SKU:
BSH102200
$8,900.00
* This adaptable swivel head bandsaw can swivel up to 45° and 30°.
* Robust twin column construction.
* Auto power off if blade breaks.
* Stroke limit switch.
* Auto return to height which is set by limit switch.
* Strong all steel welded frame for durability and long service.
* Comes with adjustable roller stand.
