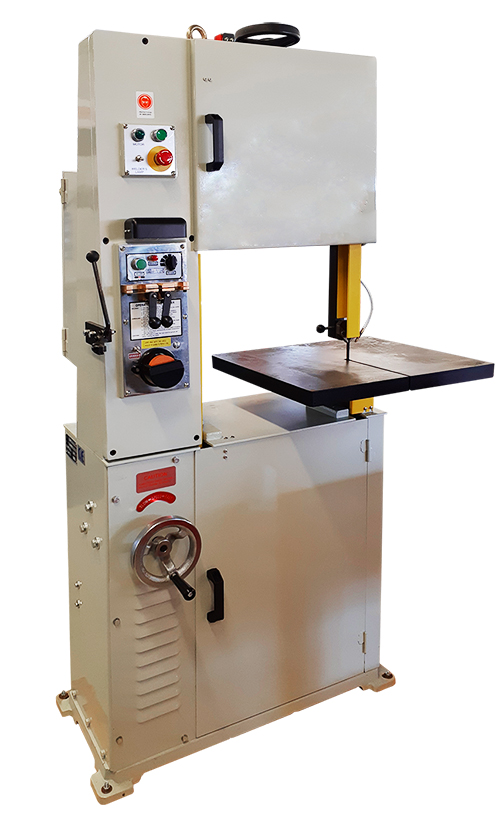

| Description | Vertical Bandsaw with Blade Welder |
|---|---|
| Model | BS-450 |
| Throat (mm) | 455 |
| Max Cut (mm) | 255 |
| Table Size (mm) | 600 x 500 |
| Blade Size (mm) | 3,500 x 12 |
| Blade Speeds (no.) | Variable |
| Blade Speeds (m/min) | 25 – 117 |
| Motor Power (kW) | 0.75 |
| Voltage (V) | 240 |
| Weight | 406kg |
| Volume | 1.635cm |
| Packing Size L X W X H | 1150 x 670 x 2120mm |
Description
SKU : BSM994010
Price per Unit
$7,300.00 (Exc GST)
$8,395.00 (Inc GST)
FEATURES:
* Robust machine that would compliment any workshop.
* Speed is changed using a handwheel situated on the side of the machine.
* Large cast table and strong metal base to support your workpiece.
* Tungsten tipped adjustable blade guides, top & bottom.
* Table tilts 15ø in all directions.
* Complete with a cutter, welder and grinder, which allows the user to make blades on the spot.
| Weight | 406 kg |
|---|---|
| Dimensions | 1.15 × 0.67 × 2.12 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
