| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY210 |
| Capacity Round 90° (mm) | 170 |
| Capacity Rectangular 90° (mm) | 150 x 150 |
| Capacity Round 45° (mm) | 100 |
| Capacity Rectangular 45° (mm) | 130 x 100 |
| Blade Speeds (no.) | 1 |
| Blade Speeds (m/min) | 65 |
| Blade Size L x H (mm) | 1,735 x 13 |
| Motor (kW) | 0.375 |
| Voltage (V) | 240 |
| Weight Nett / Gross (kg) | 100 / 112 |
| Volume (m³) | 0.5046 |
Description
SKU : BSH101320
Price per Unit
$2,760.00 (Exc GST)
$3,174.00 (Inc GST)
FEATURES:
* European style, complete on stand.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
* This model is fitted with wheels for maneuverability and space saving in confined space.
* Made in Taiwan.
| Weight | 152 kg |
|---|---|
| Dimensions | 1.6 × 0.5 × 1.3 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

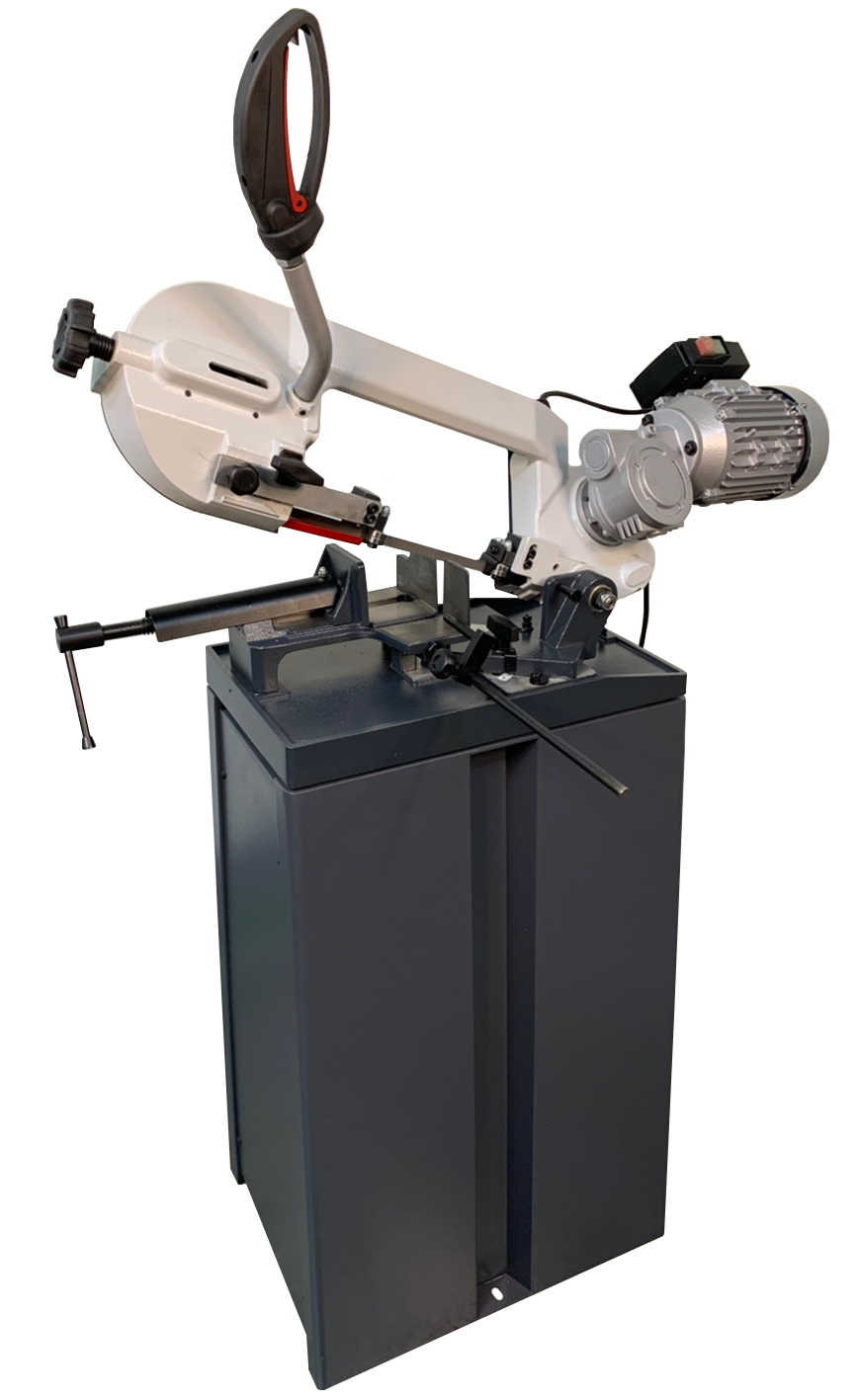

BANDSAW: CY-125 125MM 1PH (TAIWAN)
