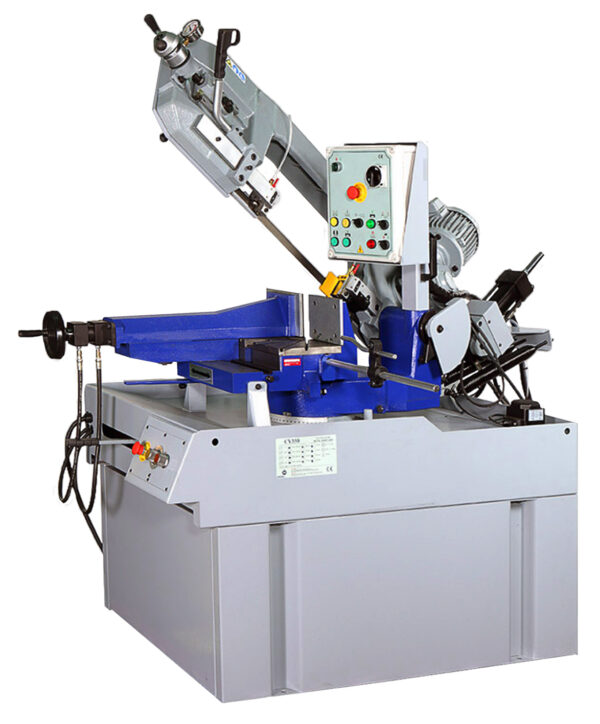

| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY-350 |
| Capacity Round 90° (mm) | 270 |
| Capacity Rectangular 90° (mm) | 350 x 240 |
| Capacity Round 45° (mm) | 230 |
| Capacity Rectangular 45° (mm) | 230 x 150 |
| Blade Speeds (no.) | 2 |
| Blade Speeds (m/min) | 36 & 72 |
| Blade Size L x H (mm) | 2,925 x 27 |
| Motor (kW) | 1.875 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 670 |
| Volume (m³) | 2.0968 |
Description
SKU : BSH101360
Price per Unit
$14,500.00 (Exc GST)
$16,675.00 (Inc GST)
FEATURES:
* Heavy duty, semi-automatic dual mitre bandsaw with two speed motor.
* Hydraulic vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
| Weight | 670 kg |
|---|---|
| Dimensions | 2 × 1.6 × 1 cm |
Specifications
