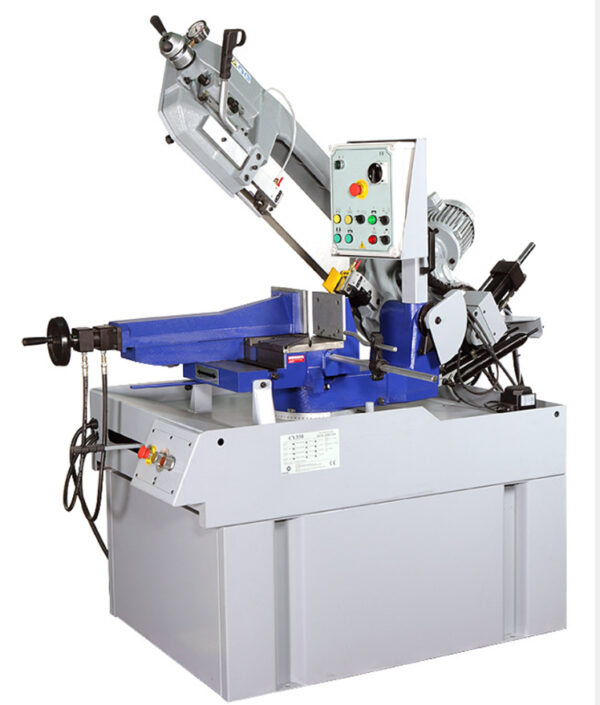

| Description | Euro type horizontal bandsaw |
|---|---|
| Model | CY350R |
| Capacity Round 90° (mm) | 270 |
| Capacity Rectangular 90° (mm) | 260 x 320 |
| Capacity Round 45° (mm) | 230 |
| Capacity Rectangular 45° (mm) | 220 x 200 |
| Blade Speeds (no.) | 1 |
| Blade Speeds (m/min) | 35 |
| Blade Size L x H (mm) | 2,925 x 27 |
| Motor (kW) | 1.875 |
| Voltage (V) | 240 |
| Weight Nett / Gross (kg) | 450 / 495 |
| Volume (m³) | 2.0960 |
Description
SKU : BSH101270
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* European style bandsaw.
* Round table.
* Contol panel located on the front of the machine.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
* Made in Taiwan.
| Weight | 495 kg |
|---|---|
| Dimensions | 1.93 × 0.97 × 1.12 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
BANDSAW: CY-260N 225MM 1PH (TAIWAN)
SKU:
BSH101254
* European style bandsaw
* Contol panel located on the front of the machine
* Fitted with quick action lock/release vice
* Swivel head adjustment for scaled mitre cutting
* Emergency cut out switch
* Coolant pump for cutting effiency and longer blade life
* Mounted on drip tray with stand assembly
* Hydraulic cylinder to control down feed during the cutting process
BANDSAW: CY-135A 135MM 1PH (TAIWAN)
SKU:
BSH101322
* Small but quality workshop bandsaw.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-210 170MM 1PH (TAIWAN)
SKU:
BSH101345
* Quality bandsaw with a heavy duty gear drive system.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-280 DUAL MITRE 1PH (TAIWAN)
SKU:
BSH101351
* Heavy duty dual mitre bandsaw.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: CY-350 DUAL MITRE SEMI-AUTOMATIC (TAIWAN)
SKU:
BSH101360
* Heavy duty, semi-automatic dual mitre bandsaw with two speed motor.
* Hydraulic vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: UE-712SB 7″ MITRE (TAIWAN) BELT DRIVE
SKU:
BSH101435
* Blade speed is adjusted using a pulley drive system.
* Dual mitre cutting up to 45° using the swivel head and sliding vice, no need to move the material.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Wire wheel cleans swarf off the blade while cutting.
* On castors for easy manoeuvrability.
* Made in Taiwan.
BANDSAW: UE-918SSA 9″ MITRE (TAIWAN)
SKU:
BSH101664
* Quality semi-automatic bandsaw.
* Control box on top of bow for descent rate & coolant.
* Mitre cut up to 45° with a swivel head and quick release vice.
* Rugged steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
BANDSAW: UE-330SSAV 13″ MITRE (TAIWAN)
SKU:
BSH101681
* Movable control box on swivel arm at a convenient height.
* Adjustable stroke limit switch presets the return height of the bow.
* Mitre cut up to 45° with a swivel head and quick release vice.
* All welded steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Hydraulic vice.
* Made in Taiwan.
