| Description | Euro type semi-auto bandsaw |
|---|---|
| MODEL | CY-355 |
| Capacity Round 90° (mm) | 355 |
| Capacity Rectangular 90° (mm) | 300 x 490 |
| Capacity Round 45° (mm) | 350 |
| Capacity Rectangular 45° (mm) | 280 x 340 |
| Blade Speeds (no.) | 2 |
| Blade Speeds (m/min) | 20 & 80 |
| Blade Size L x H (mm) | 3,770 x 34 |
| Motor (kW) | 2.2 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 715 |
| Volume (m³) | 3.8707 |
| Packing Size L x W x H (mm) | 2180 x 970 x 1130 |
Back to products

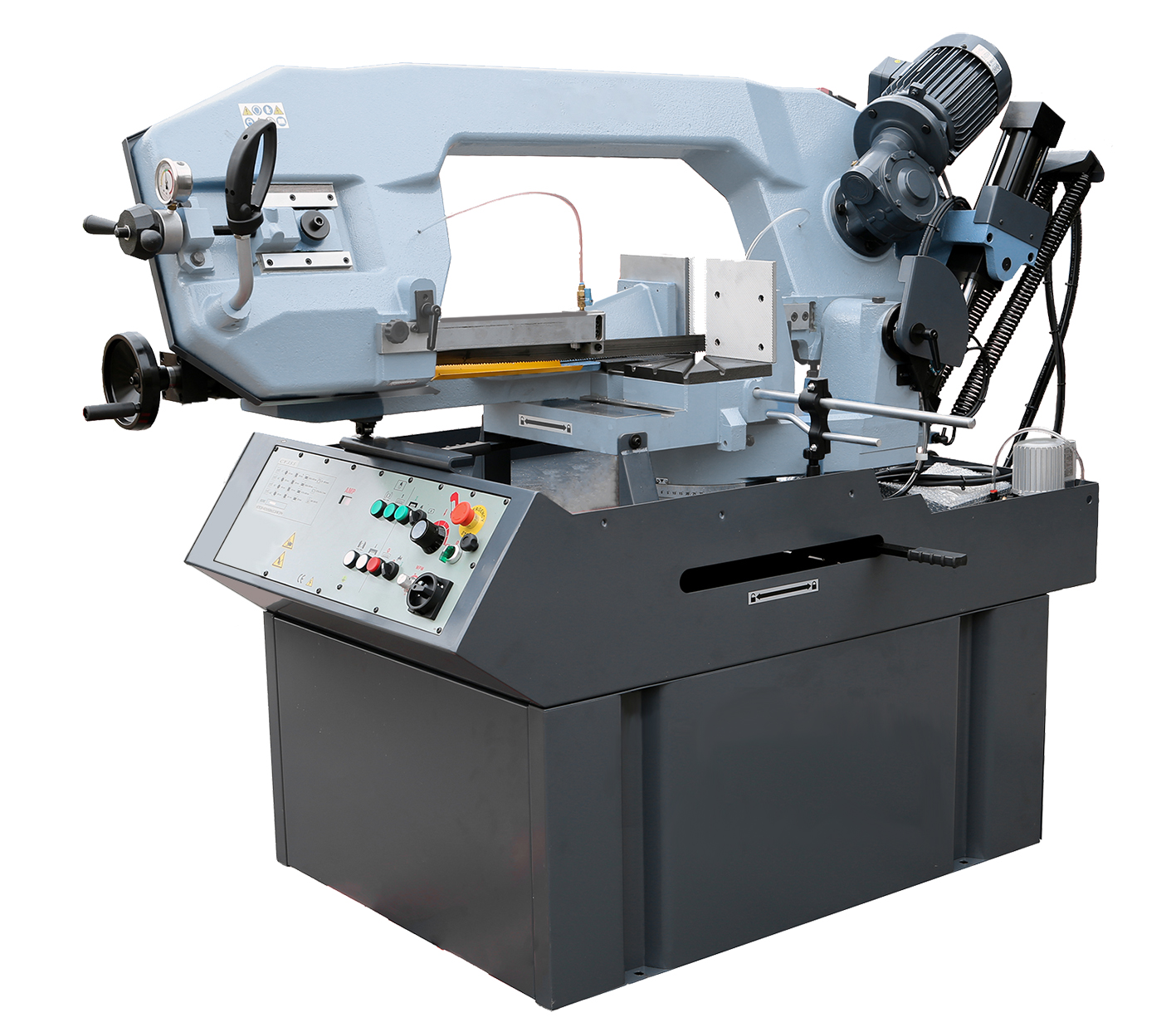

BANDSAW: BS-460G DUAL MITRE
$12,000.00
Description
SKU : BSH101362
Price per Unit
$16,800.00 (Exc GST)
$19,320.00 (Inc GST)
FEATURES:
* Heavy duty, semi-automatic dual mitre bandsaw with two speed motor.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
| Weight | 715 kg |
|---|---|
| Dimensions | 2.24 × 0.96 × 1.8 cm |
