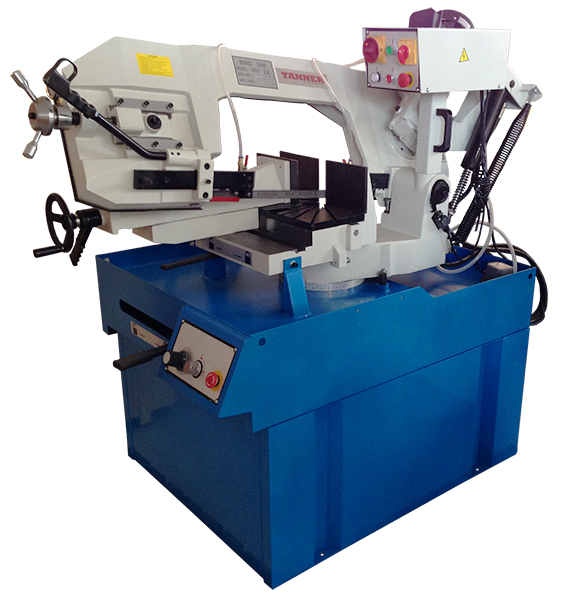

| Description | Dual mitre semi-automatic bandsaw |
|---|---|
| Model | G-5027 |
| Capacity Round 90° (mm) | 270 |
| Capacity Rectangular 90° (mm) | 350 x 240 |
| Capacity Round 45° (mm) | 230 |
| Capacity Rectangular 45° (mm) | 230 x 150 |
| Blade Speeds (no.) | 2 |
| Blade Speeds (m/min) | 36 & 72 |
| Blade Size L x H (mm) | 2,950 x 27 |
| Motor (kW) | 1.875 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 446 / 551kg |
| Volume (m³) | 2.3937 |
| Packing Size L x W x H (mm) | 1770 x 980 x 1380mm |
Description
SKU : BSH101200
Price per Unit
$6,900.00 (Exc GST)
$7,935.00 (Inc GST)
FEATURES:
* Heavy duty semi-automatic dual mitre saw.
* Control box for blade speed, descent rate & coolant.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Trigger type handle.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control to both sides of the cut.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
| Weight | 551 kg |
|---|---|
| Dimensions | 1.77 × 0.98 × 1.38 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
