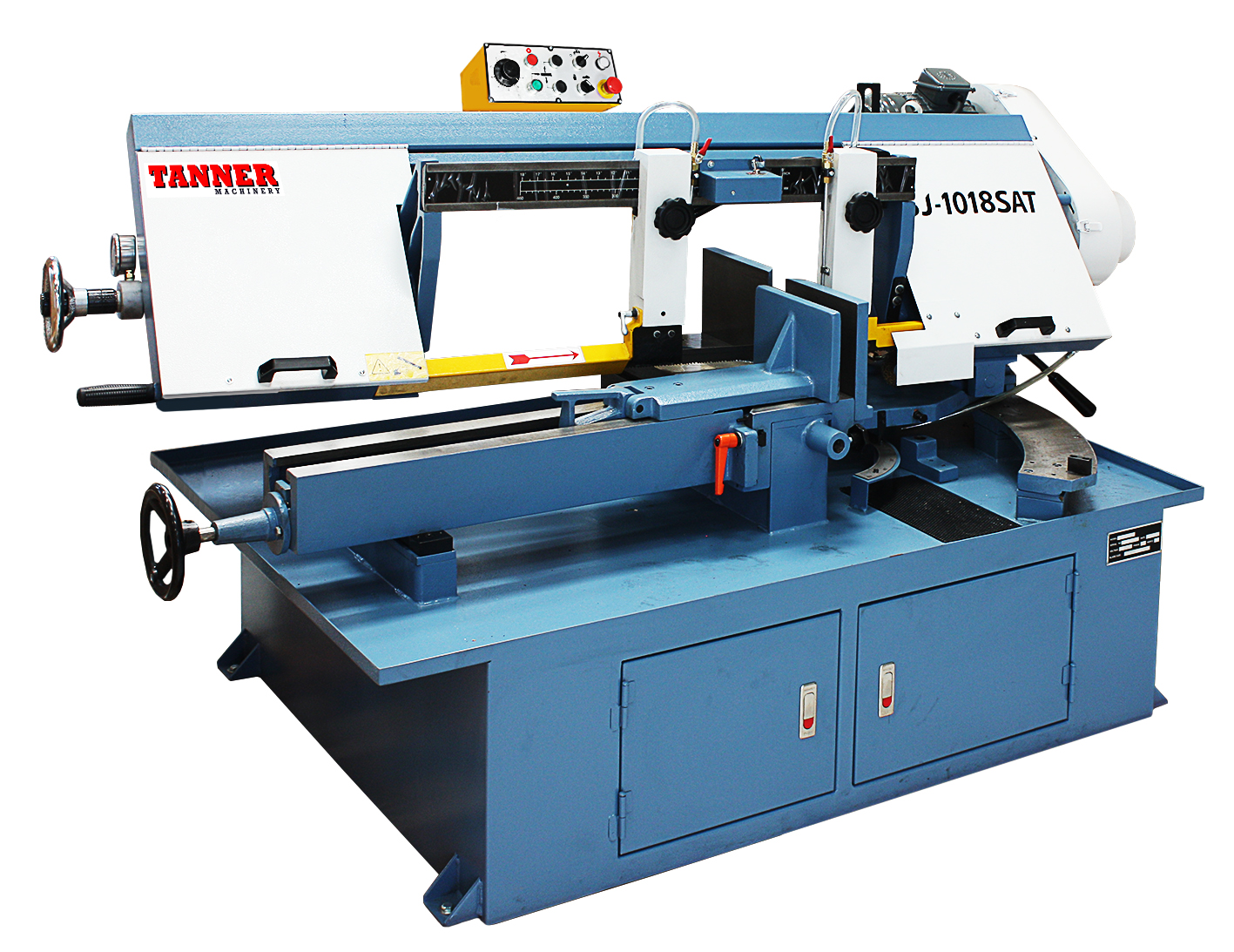

| Description | Semi-auto dual mitre bandsaw |
|---|---|
| Model | SJ-1018SAT |
| Capacity Round 90° (mm) | 260 |
| Capacity Rectangular 90° (mm) | 260 x 430 |
| Capacity Round 45° (mm) | 260 |
| Capacity Rectangular 45° (mm) | 260 x 300 |
| Blade Speeds (no.) | 4 |
| Blade Speeds (m/min) | 15, 30, 61, 94 |
| Blade Size L x H (mm) | 3,660 x 27 |
| Motor (kW) | 1.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 500 / 550 |
| Volume (m³) | 2.091 |
| PACKING SIZE L X W X H | 2100 x 980 x 1020mm |
Description
SKU : BSH101705
Price per Unit
$9,500.00 (Exc GST)
$10,925.00 (Inc GST)
FEATURES:
* Semi-automatic machine.
* Swivel head for easy angle cutting without moving material.
* Bi-directional mitre cutting capable of cutting 60° right & 45° lleft.
* Auto lifting frame.
* Efficient coolant system built in tank & pump.
* High efficiency motor.
* Speed change selection.
* Instant blade tension.
* Large tungsten carbide & roller blade guide.
* Adjustable rod for same cutting length.
* Low voltage control with overload protection.
* Quality Taiwanese construction.
| Weight | 550 kg |
|---|---|
| Dimensions | 2.1 × 0.98 × 1.02 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
BANDSAW: CY-350R 270MM 1PH (TAIWAN)
SKU:
BSH101270
* European style bandsaw.
* Round table.
* Contol panel located on the front of the machine.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
* Made in Taiwan.
BANDSAW: CY-125 125MM 1PH (TAIWAN)
SKU:
BSH101318

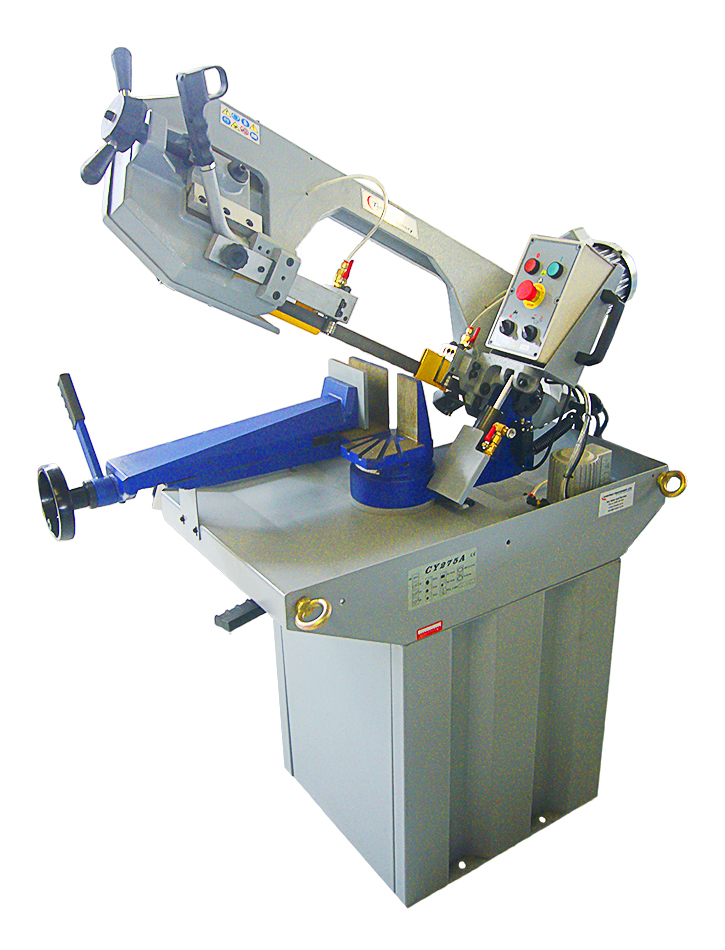

BANDSAW: CY-275 225MM 2 SPEED 3PH (TAIWAN)
SKU:
BSH101350
* Quality bandsaw with a heavy duty gear drive system and two speed motor.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-280 DUAL MITRE 2 SPEED 3PH (TAIWAN)
SKU:
BSH101352
* Heavy duty dual mitre bandsaw with a two speed motor.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: CY-300 DUAL MITRE 2 SPEED 3PH (TAIWAN)
SKU:
BSH101355
* Heavy duty dual mitre bandsaw with a two speed motor.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: UE-250SSA 10″ MITRE (TAIWAN)
SKU:
BSH101674
* Quality semi-automatic bandsaw.
* Control box on top of bow for descent rate & coolant.
* Mitre cut up to 45° with a swivel head and quick release vice.
* Rugged steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
BANDSAW: WG-500DSA DUAL MITRE (TAIWAN)
SKU:
BSH101685
* Taiwanese made semi-automatic dual-mitre bandsaw.
* Comprehensive control panel on telescopic pendant.
* Full length hydraulic vice, with unique sliding design.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Linear bearing on the base of the sliding vice for smooth movement.
* Rack type quick action vice with hydraulic clamping.
* Motor inverter controls the blade speed accurately and efficiently.
* Mobile coolant tray, convnient for when cutting angles.
* Material feeder for detecting cutting height and reducing cycle time.

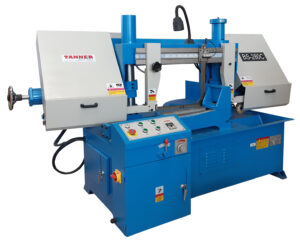

BANDSAW: BS-280C SEMI- AUTO HORZ
SKU:
BSH102200
* This adaptable swivel head bandsaw can swivel up to 45° and 30°.
* Robust twin column construction.
* Auto power off if blade breaks.
* Stroke limit switch.
* Auto return to height which is set by limit switch.
* Strong all steel welded frame for durability and long service.
* Comes with adjustable roller stand.
