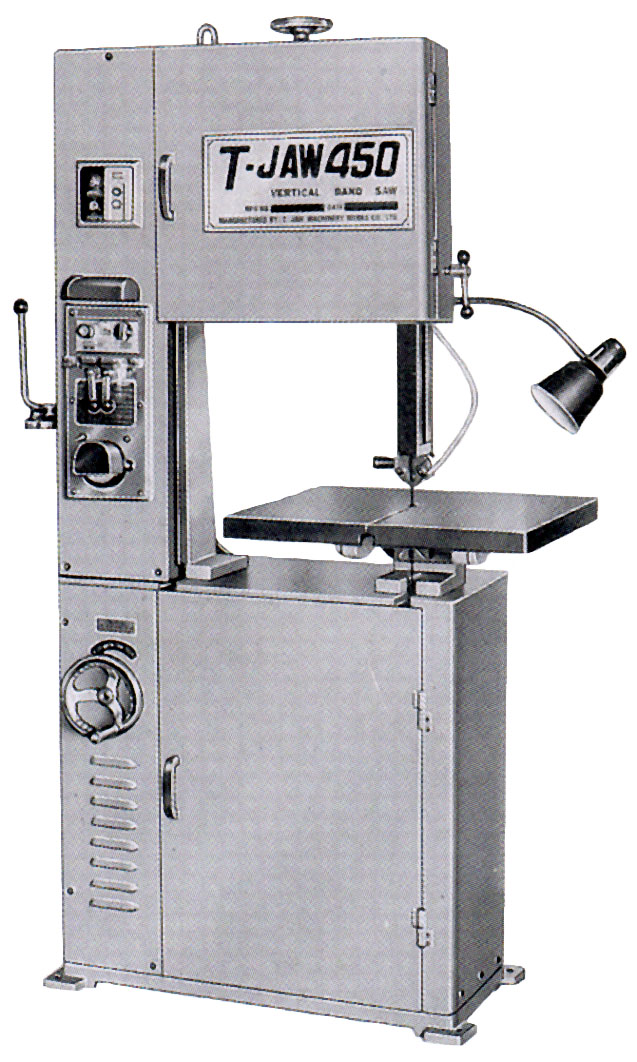

| MODEL | TJ-450 |
|---|---|
| THROAT WIDTH | 450mm |
| MAX CUTTING HEIGHT | 254mm |
| TABLE SIZE | 565 X 500mm |
| MOTOR | 1Hp 3Ph |
| BLADE SIZE | 3500mm |
| BLADE SPEED | 25-117m/Pm |
| WELDER | Yes & Grinder |
| WEIGHT NETT/GROSS | 380 / 460kg |
| VOLUME | 1.584cm |
| PACKING SIZE |
Description
SKU : BSM994000
Price per Unit
$6,600.00 (Exc GST)
$7,590.00 (Inc GST)
FEATURES:
* Robust machine that would complement any workshop
* Speed change is altered by handwheel situated at the on one side of the machine
* Heavy cast table and strong metal base to support your workpiece
* Table tilts 15ø both left and right
* Complete with welder which allows the customer to make his own blades on the spot
* Also equipped with a grinder to finished making the blade off
* A blade shear is also mounted on the machine for convenience for cutting the blades to set length
| Weight | 460 kg |
|---|---|
| Dimensions | 1.1 × 0.8 × 1.8 cm |
