| MODEL | TJ-500D |
|---|---|
| THROAT WIDTH | 510mm |
| MAX CUTTING HEIGHT | 360mm |
| TABLE SIZE | 740 X 680mm |
| MOTOR | 2Hp 1 Phase |
| BLADE SIZE | 3990 X 25mm |
| BLADE SPEED | 25-456m/Min |
| WELDER | Yes |
| WEIGHT NETT/GROSS | 600/700kg |
| VOLUME | 0.2496cm |
Description
SKU : BSM994024
Price per Unit
$12,400.00 (Exc GST)
$14,260.00 (Inc GST)
FEATURES:

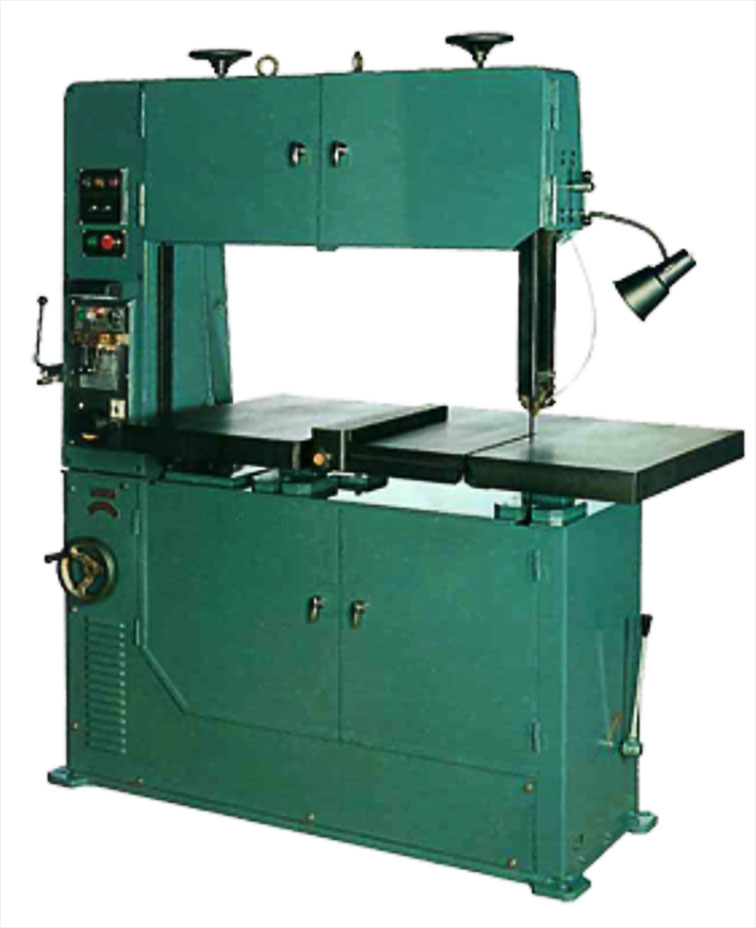

* This 500D metal cutting verticle bandsaw has a 500mm throat
* Table tilt 15 deg both left and right
* Auto-sliding table
* Comes with buit-in blade welder and grinder
* Variable operation so you can choose the correct speed for the type of metal
* Fitted with rubber bonded saw wheels for positive blade tracking
* Comes with blade cleaning brush
| Weight | 700 kg |
|---|---|
| Dimensions | 1.3 × 0.08 × 2.4 cm |
