| Description | Horizontal bandsaw |
|---|---|
| Model | UE-916A |
| Capacity Round 90° (mm) | 225 |
| Capacity Rectangular 90° (mm) | 225 x 345 |
| Capacity Round 45° (mm) | 165 |
| Capacity Rectangular 45° (mm) | 225 x 165 |
| Blade Speeds (no.) | 4 |
| Blade Speeds (m/min) | 25, 40, 52, 72 |
| Blade Size L x H (mm) | 3,035 x 27 |
| Motor (kW) | 1.1 |
| Voltage (V) | 240 |
| Weight Nett / Gross (kg) | 320 |
| Volume (m³) | 0.9972 |
| Packing Size L x W x H (mm) | 1680 x 560 x 1060 |
Description
SKU : BSH101657
Price per Unit
$6,500.00 (Exc GST)
$7,475.00 (Inc GST)
FEATURES:
* Control box situated at top of the bow controls blade speed, descent rate & coolant.
* Mitre cutting up to 45° using the vice.
* Quick action vice clamping device.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides with large rule at the top for accuracy.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
| Weight | 320 kg |
|---|---|
| Dimensions | 1.68 × 0.56 × 1.06 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
BANDSAW: UE-250A 10″ MANUAL (TAIWAN)
SKU:
BSH101658
* Control box situated at top of the bow controls blade speed, descent rate & coolant.
* Mitre cutting up to 45° using the vice.
* Quick action vice clamping device.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides with large rule at the top for accuracy.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
BANDSAW: UE-330A – MANUAL (TAIWAN)
SKU:
BSH101686
* Control box situated at top of the bow controls blade speed, descent rate & coolant.
* Mitre cutting up to 45° using the vice.
* Quick action vice clamping device.
* Rugged fabricated steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides with large rule at the top for accuracy.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.

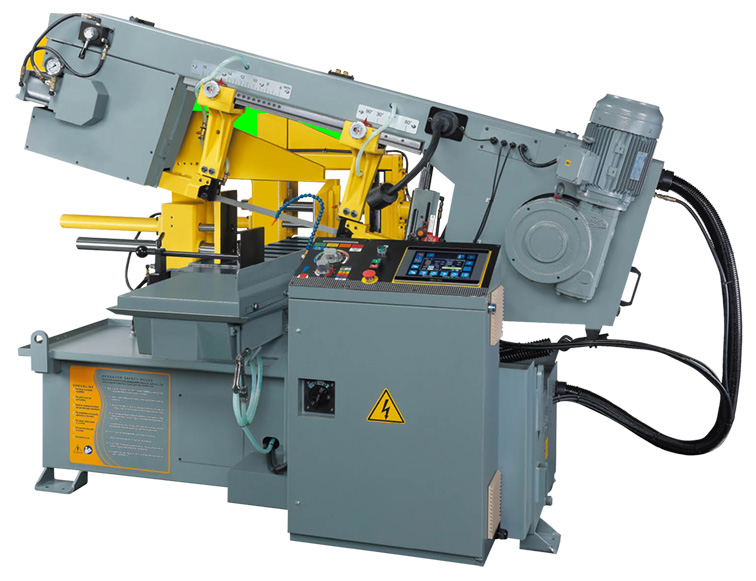

BANDSAW: WS-20FAG FULLY AUTO SHUTTLE VICE (TAIWAN)
