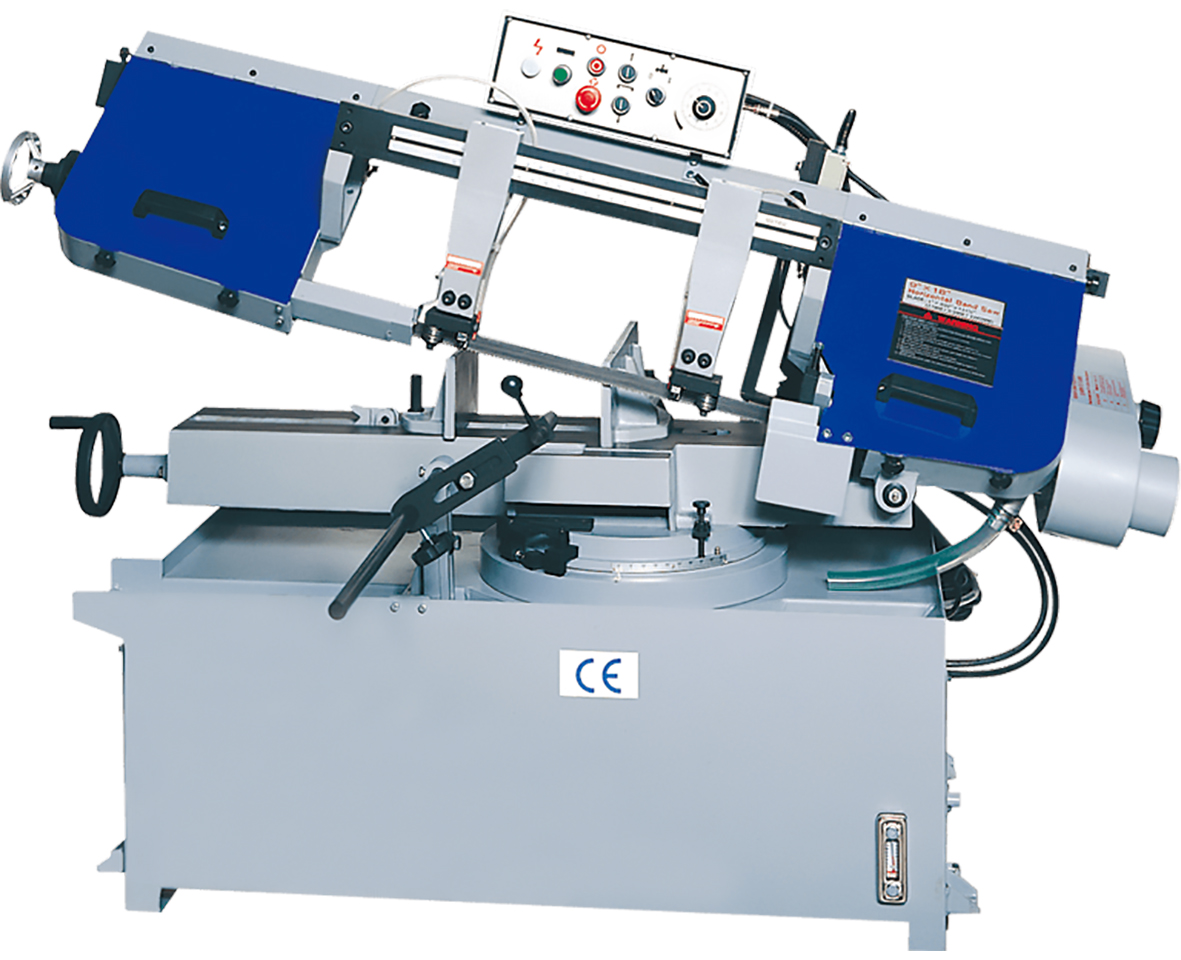

| Description | Semi-automatic |
|---|---|
| Model | UE-918SSA |
| Capacity Round 90° (mm) | 225 |
| Capacity Rectangular 90° (mm) | 225 x 430 |
| Capacity Round 45° (mm) | 225 |
| Capacity Rectangular 45° (mm) | 225 x 295 |
| Blade Speeds (no.) | Variable |
| Blade Speeds (m/min) | 25 – 75 |
| Blade Size L x H (mm) | 3,345 x 27 |
| Motor (kW) | 1.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 550 / 560 |
| Volume (m³) | 1.7820 |
Description
SKU : BSH101664
Price per Unit
$11,700.00 (Exc GST)
$13,455.00 (Inc GST)
FEATURES:
* Quality semi-automatic bandsaw.
* Control box on top of bow for descent rate & coolant.
* Mitre cut up to 45° with a swivel head and quick release vice.
* Rugged steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
| Weight | 560 kg |
|---|---|
| Dimensions | 2.4 × 0.09 × 1.6 cm |
Specifications
