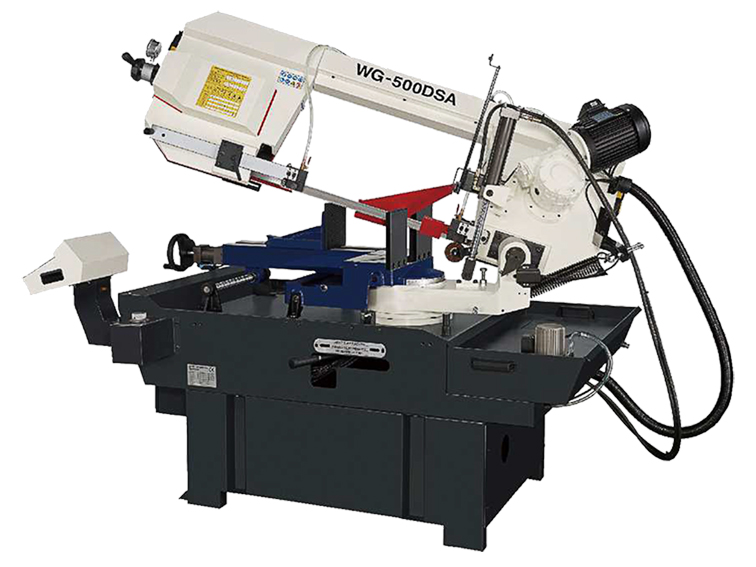

| Description | Semi-automatic dual mitre bandsaw |
|---|---|
| Model | WG-500DSA |
| Capacity Round 90° (mm) | 350 |
| Capacity Rectangular 90° (mm) | 200 x 500 |
| Capacity Round 45° R (mm) | 300 |
| Capacity Rectangular 45° R (mm) | 145 x 340 |
| Capacity Round 60° R (mm) | 210 |
| Capacity Rectangular 60° R (mm) | 125 x 220 |
| Capacity Round 45° L (mm) | 290 |
| Capacity Rectangular 45° L (mm) | 60 x 345 |
| Blade Speeds (no.) | Variable |
| Blade Speeds (m/min) | 20 – 85 |
| Blade Size L x H (mm) | 3,880 x 34 x 1.1 |
| Motor (kW) | 2.25 (3HP) |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 677 / 757 |
| Volume (cm) | |
| PACKING SIZE |
Description
SKU : BSH101685
Price per Unit
$19,900.00 (Exc GST)
$22,885.00 (Inc GST)
FEATURES:
* Taiwanese made semi-automatic dual-mitre bandsaw.
* Comprehensive control panel on telescopic pendant.
* Full length hydraulic vice, with unique sliding design.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Linear bearing on the base of the sliding vice for smooth movement.
* Rack type quick action vice with hydraulic clamping.
* Motor inverter controls the blade speed accurately and efficiently.
* Mobile coolant tray, convnient for when cutting angles.
* Material feeder for detecting cutting height and reducing cycle time.
