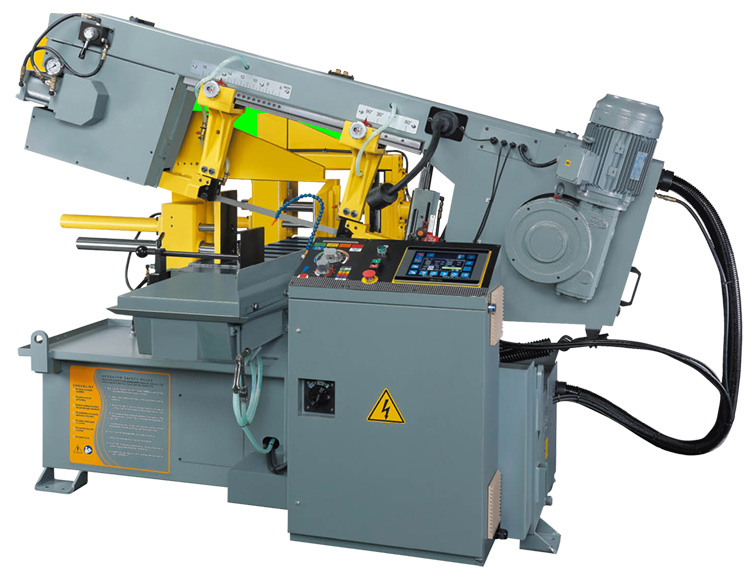

| Description | Auto Mitre cutting bandsaw |
|---|---|
| MODEL | WS-20FAG |
| Capacity Round 90° (mm) | 330 |
| Capacity Rectangular 90° (mm) | 330 x 405 |
| Capacity Round 45° (mm) | 290 |
| Capacity Rectangular 45° (mm) | 330 x 240 |
| Capacity Round 60° (mm) | 180 |
| Capacity Rectangular 60° (mm) | 280 x 180 |
| Blade Speeds (m/min) | 33 – 105 |
| Blade Size | 34 x 1.1 x 4720mm |
| Feeding Stroke | 700mm |
| Table Height | 870mm |
| Coolant Pump | 1/8hp. 100 L Capacity |
| Hydraulic Tank Capacity | 22 L |
| Blade Motor (kW) | 5 hp (3.7 Kw) |
| Weight Nett / Gross (kg) | 1780 / 1896 |
| Volume (cm) | 3.360 |
Description
SKU : BSH101690
Price per Unit
$59,000.00 (Exc GST)
$67,850.00 (Inc GST)
FEATURES:
* New upgraded Human Machine Interface Panel. Provides simple and easy operating syste.
* Advanced operating system with built in error indication. 3D machine error display on screen.
* Encoder controlled lenght setting for accurate positioning.
* Dual vice system i.e. Shuttle vice and Clamping vice.
* Blade speed is driven by Invertor to provde high efficency and variable speed.
* Equipped with hyddraulic blade tension provides extended blade life.
* Made in Taiwan.
| Weight | 1896 kg |
|---|---|
