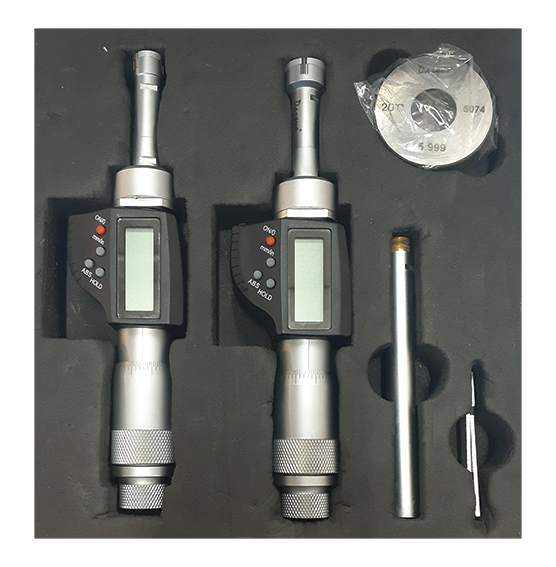

| MODEL | Dasqua Bore Micrometer Set (Digital ) |
|---|---|
| RANGE | 12 – 20 mm |
| GRADUATIONS | 0.001 mm |
| SETTING RING | 16.0mm |
| EXTENSION | 150mm |
| ACCURACY | 0.004mm |
| WEIGHT NETT/GROSS | 1.775kg |
| VOLUME | 0.0067cm |
Description
SKU : MCB750386
Price per Unit
$945.00 (Exc GST)
$1,086.75 (Inc GST)
FEATURES:
* Manufactured by Dasqua to DIN863.
* Direct reading from easy to read Digital display
* Hold function
* Self centering micrometer hardened head from 12mm with carbide measuring jaws
* Ratchet stops providing correct contact pressure for accurate reading
| Weight | 1.775 kg |
|---|---|
| Dimensions | 0.4 × 0.28 × 0.06 cm |
