BUTT WELDER: 10KVA 3PH SINIC $0.00
Click to enlarge

Availability : Enquire Now

Price per Unit

ex-gst

$0.00

Inc-gst

$0.00
Print
Description

SKU : WEB178305

Price per Unit

$0.00 (Exc GST)

$0.00 (Inc GST)

FEATURES:


Weight 53 kg
Dimensions 0.35 × 0.25 × 0.8 cm
Compare
Add to wishlist
Specifications
Description

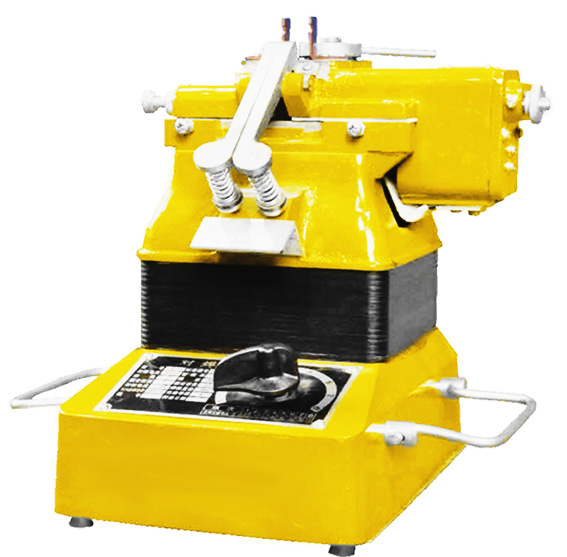

DESCRIPTION Butt Welder
MODEL UN-3
RATED VOLTAGE 220v
RATED INPUT CAPACITY 3 KVA
RATED PRIMARY CURRENT 13.6 Amps
RATED DUTY CYCLE 15%
NO LOAD VOLTAGE 1.55-3.0v
MAX FORGING FORCE 180n
MAX FEED STROKE 5.0mm
MAX JAW DISTANCE 10.0mm
MAX WELD DIAMETER 1.0 – 5.0mm
WEIGHT NETT/GROSS 50/53kg
VOLUME 0.0700cm
