| SWING OVER BED | 160mm |
|---|---|
| SWING OVER XSLIDE | 70.0mm |
| DISTANCE BETWEEN CENTRES | Nil |
| SPEEDS | 200 – 3200rpm Variable |
| SPINDLE BORE | 20.0mm |
| SPINDLE NOSE | |
| BAR CAPACITY | 19.0mm |
| ZTRAVEL | 125mm |
| XTRAVEL | 125mm |
| TOOL POST | |
| SPINDLE MOTOR | 490 Watts |
| TAILSTOCKTAPER | Nil |
| CONTROLLER | Computer CoNTrolled |
| WEIGHT NETT/GROSS | 110 Kg |
| VOLUME | |
| FLOOR SPACE | 730 X 560mm |
Description
SKU : LCN300130
Price per Unit
$56,000.00 (Exc GST)
$64,400.00 (Inc GST)
FEATURES:

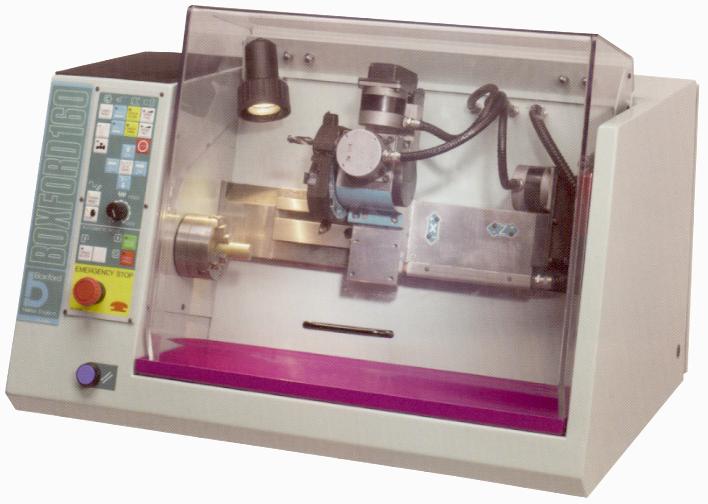

* The PC controlled Boxford 160TCL lathe is ideally suited to a class room environment and offers the perfect solution for hightech * The Boxford software is an integrated suite of powerful CAD/CAM tools * The machine rigidity and spindle torque allows a large variety of materials and components to be machined * Active and accurate tool path graphics continuously displayed line by line during program write test run and manufacture * Full perimeter guarding with interlocking switches on access doors arranged in the positive (saftey) mode for spindle stop and feed hold * Latching emergency stop button * Low voltage control circuitry *
| Weight | 119 kg |
|---|
