| SWING OVER BED | 1270MM |
|---|---|
| SWING OVER XSLIDE | 700MM |
| DISTANCE BETWEEN CENTRES | 2450 – 10450MM |
| SPEEDS | 9.5-450RPM |
| SPINDLE BORE | 153MM Or 230MM |
| SPINDLE NOSE | Asa-A2-11 Or 15 |
| BAR CAPACITY | 150MM Or 225MM |
| ZTRAVEL | 2000 – 10000MM |
| XTRAVEL | 850MM |
| TOOL POST | |
| SPINDLE MOTOR | “26 |
| 36 | 51Kw Optional” |
| TAILSTOCKTAPER | MT6 |
| CONTROLLER | Fanuc |
| WEIGHT NETT/GROSS | |
| VOLUME | |
| FLOOR SPACE | 5580 – 13580MM Length |
Description

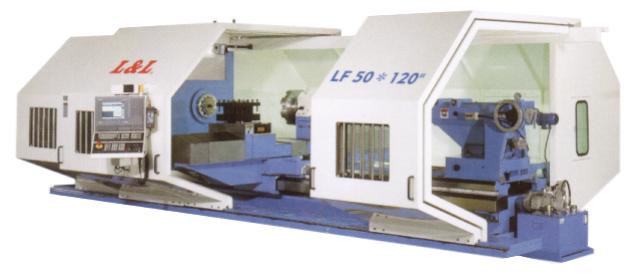

SKU : LCN100650
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Heavy duty CNC lathe with big swing and centre distance from 2450mm to 10450mm * Spindle speeds can change with different motor selection * Available in two two spindle bore sizes – 153mm & 230mm * This is a very sturdy and well designed machine with 800mm bed width * Headstock is made by ‘Meenhanite’ cast iron heat treated for rigidity *
Specifications
