| Swing Over Bed (mm) | 400mm, with 190mm 3 Jaw Chuck |
|---|---|
| Bed Width (mm) | 320mm |
| Swing Over X-Slide (mm) | 300mm |
| Between Centres (mm) | 835mm |
| Spindle Bore (mm) | 54mm |
| Bar Capacity (mm) | 52mm |
| Z Travel (mm) | 815mm |
| X Travel (mm) | 300mm |
| Tool Size (mm) | 20 x 20 |
| Speeds (rpm) | 50 – 3500 |
| Rapid Feed Rate (m/min) | 8 |
| Spindle Nose | A2-5 |
| Tailstock | MT4 |
| Turret Stations | 6 |
| Controller | Siemens 808D |
| Motor (kW) | 5.5 |
| Voltage (V) | 415 |
| Weight Nett/Gross (kW) | 1,550 / 1,600 |
| Volume (m³) | 2.1666 |
| Dimensions L x H x W (mm) | 2,120 x 1,400 x 730 |
Description
SKU : LCN200400
Price per Unit
$35,000.00 (Exc GST)
$40,250.00 (Inc GST)
FEATURES:

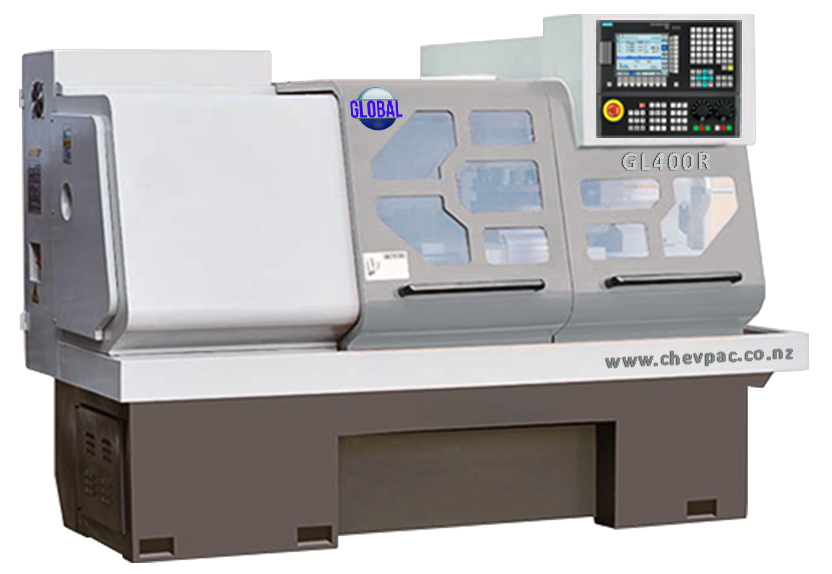

* The GL-400R CNC lathe is equipted with the Seimens 808D
* Very styish lathe with locking systems on all opening doors for safety
* Sturdy well constructed machine
* Rapid feed
| Weight | 1550 kg |
|---|---|
| Dimensions | 2.12 × 1.4 × 0.73 cm |
