SWING OVER BED | 760MM |
---|---|
SWING OVER XSLIDE | 560MM |
DISTANCE BETWEEN CENTRES | 2000MM |
SPEEDS | 10-1400RPM |
SPINDLE BORE | 105MM |
SPINDLE NOSE | D1-11 |
BAR CAPACITY | 100MM |
ZTRAVEL | 1900MM |
XTRAVEL | |
TOOL POST | Quick Change |
SPINDLE MOTOR | 15Kw |
TAILSTOCKTAPER | MT6 |
CONTROLLER | Fagor 8040Tc |
WEIGHT NETT/GROSS | 5000.00/5700 |
VOLUME | |
FLOOR SPACE | 5080MM (Length) |
Availability : Enquire Now
Price per Unit
ex-gst
$0.00Inc-gst

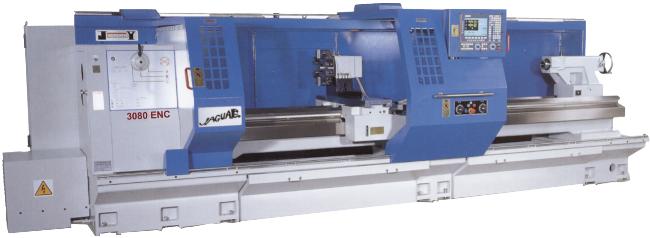

$0.00CNC LATHE: JAGUAR 3080ENC
Description
SKU : LCN301110
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* This Jaguar model teach lathe comes with Fagor 8040TC controller for CNC functions but simple to use * Spindle is supported by selected and preloaded super precision bearings to ensure high accuracy through the full speed range * The main spindle shaft and gears are made from high grade alloy steel hardened and ground for high speed running and lower noise level * The automatic lubrication pump on the apron provides all slideways and two axis ballscrews lubrication continually * Comes with full length splash guard *
Weight | 5700 kg |
---|
Specifications
Description
Reviews (0)
Be the first to review “CNC LATHE: JAGUAR 3080ENC” Cancel reply
