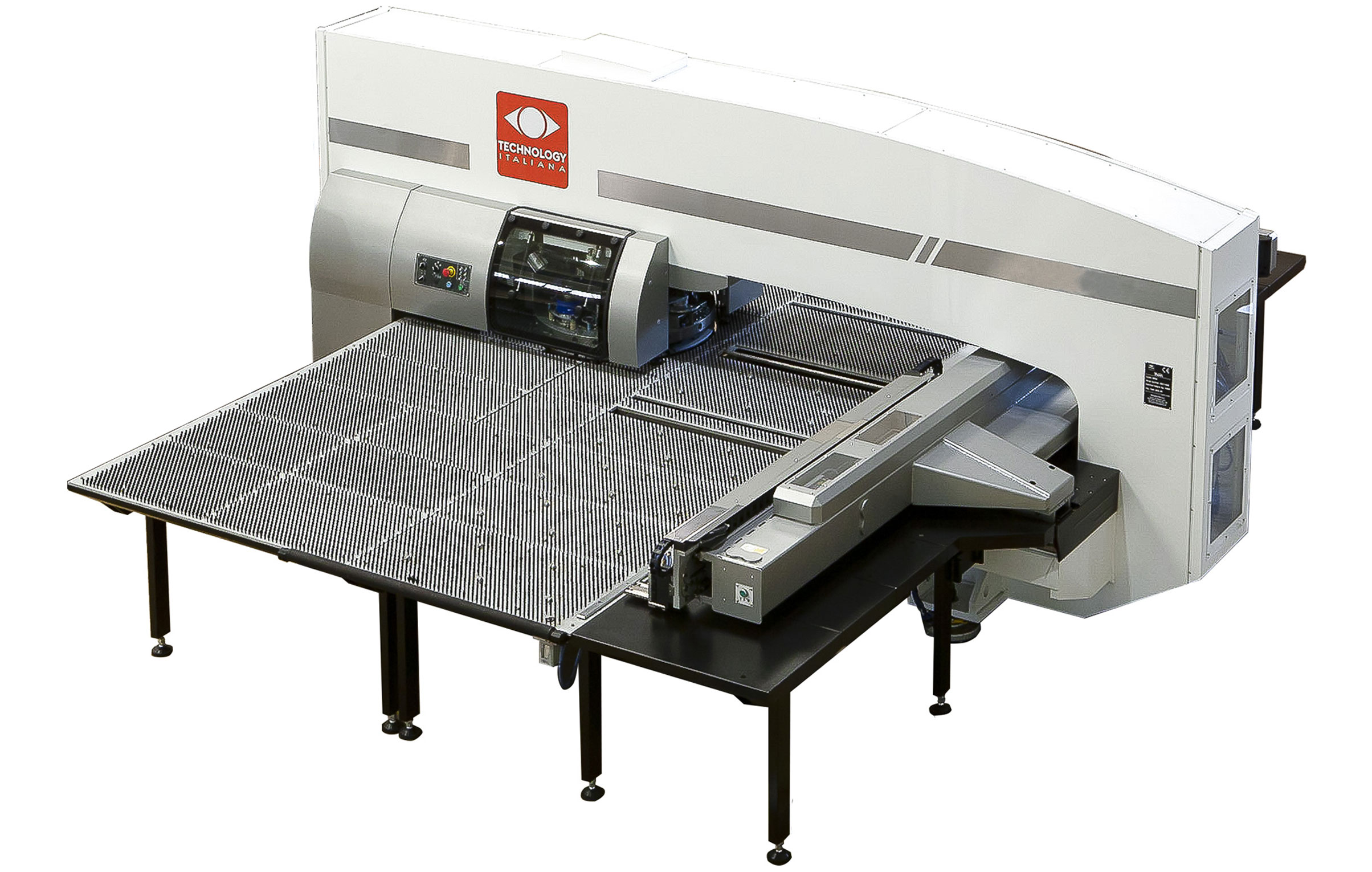

It is suitable for own productions and third-party account, providing an excellent performance/investment ratio. The groundbreaking vertical turret, unique feature of TECHNOLOGY, is equipped with 15 rotating stations that allow considerable savings on machine setup times and tools purchase costs The advanced integrated auto-index system allows any tool to be oriented from 0° to 360°, with an accuracy of 0.01°. Thus the number of tools to be purchased is drastically reduced. In addition, with CAD/CAM software you can automatically perform complex nesting by reducing programming and production time The open "C" frame provides the highest possible accessibility. Unlike closed structures, the "C" shaped frame is the only solution to process sheets that are larger than the machine working area and is ideal for loading sheets on multiple sides without obstacles. For the first time on a punching machine, high-frequency operations can be carried out without motor overheating, thanks to the innovative DualCAM technology. TECHNOLOGY has thus introduced a new CONTINUOUS ROTATION mode of the engine, in addition to the traditional PENDULUM mode, which is common to all punching machines Latest servo drive technolgy with FANUC motor and FANUC Controller. Compatibility with Trumpf tools

MODEL VT-300 DESCRIPTION “C” Station Thick Turret TO SUIT VT-300 SIZE 43.0mm Round WEIGHT VOLUME

MODEL VT-300 DESCRIPTION “D” Station Thick Turret TO SUIT VT-300 SIZE 40 x 5mm Rect WEIGHT VOLUME
