| DESCRIPTION | Co-Ax Indicator |
|---|---|
| RANGE | 0-3mm |
| MODEL | Co-Ax |
| READING | 0.01mm |
| FACE DIAMETER | 40.0mm |
| MOUNT TYPE | Shank |
| WEIGHT NETT/GROSS | 0.745/ 0.747kg |
| VOLUME | 0.0025cm |
Description
SKU : DG-759180
Price per Unit
$272.16 (Exc GST)
$312.98 (Inc GST)
FEATURES:
* Manufactured by DASQUA

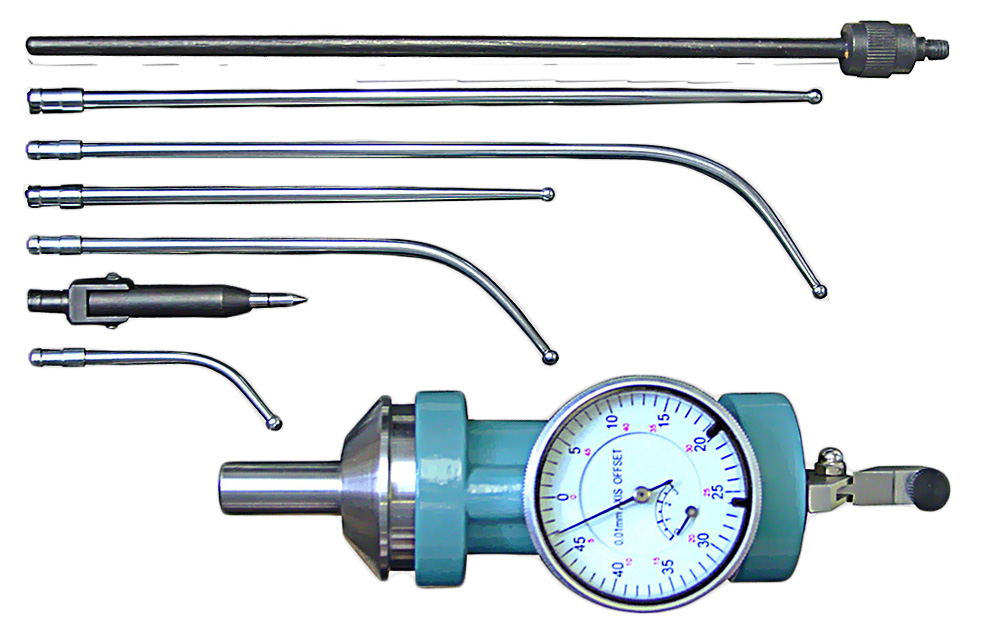

* This Co-Axial indicator comes complete with 6 interchangable caliper arms
* The length of the head is 140mm and the mounting shank is 10mm
* Maximum measuring range is 3mm with caliper arm lengths of 50 100 and 150mm
* Main uses are for centering finding the corners scribe and mark the zero point
* Comes with stop bar for fixing to the head while the spindle rotates
| Weight | 0.745 kg |
|---|---|
| Dimensions | 0.24 × 0.13 × 0.08 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
CO-AX INDICATOR: IMPERIAL 0 – 0.15″ DASQUA
SKU:
DG-759182
* Manufactured by Dasqua
* This Co-Axial indicator comes complete with 6 interchangable caliper arms
* The length of the head is 140mm and the mounting shank is 10mm
* Maximum measuring range is 0.0.25" with caliper arm lengths of 50 100 and 150mm
* Main uses are for centering finding the corners scribe and mark the zero point
* Comes with stop bar for fixing to the head while the spindle rotates
