DESCRIPTION | Dasqua |
---|---|
BRAND | Dasqua |
MODEL | 1012-2010 |
CENTERING RULER | 300mm/12″ |
ACCURACY | + /- 0.15mm |
I-SQUARE | a. 90deg 8′ b. 40deg 10′ |
DIGITAL PROTRACTOR RANGE | 180deg |
ACCURACY | +/- 10′ (within 0.2deg) |
RULER READING (FRONT) | 0.5mm and 1/32″ |
RULER READING (REVERSE) | 1.0mm and 1/64″ |
HANDLE | Alloy |
PACKING | Plastic Case |
WEIGHT NETT/GROSS | 1.9kg |
VOLUME | 0.0043cm |
Description
SKU : SQP0141238
Price per Unit
$198.00 (Exc GST)
$227.70 (Inc GST)
FEATURES:
DASQUA ” Born in Italy – Raised by the World ” (NEW )

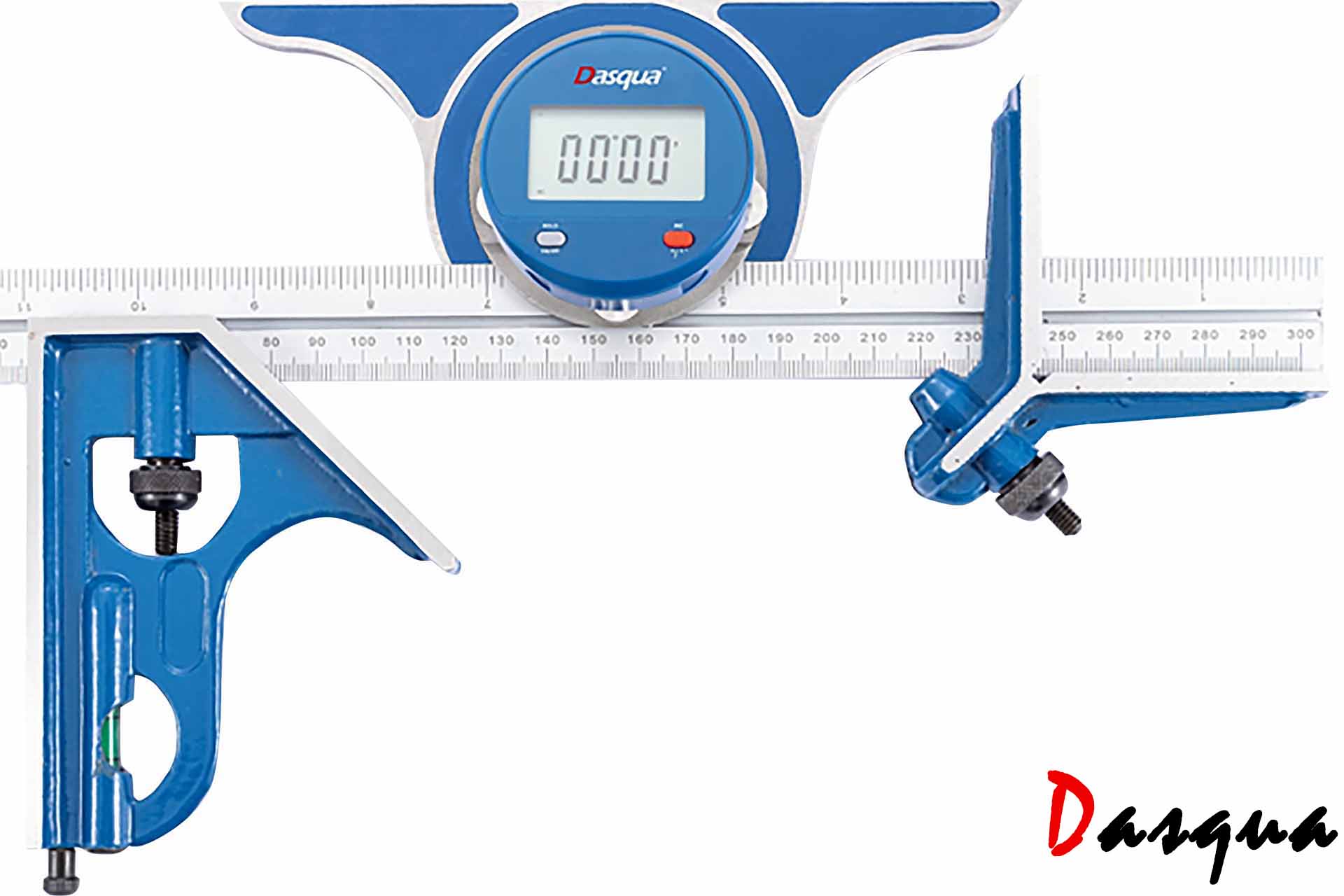

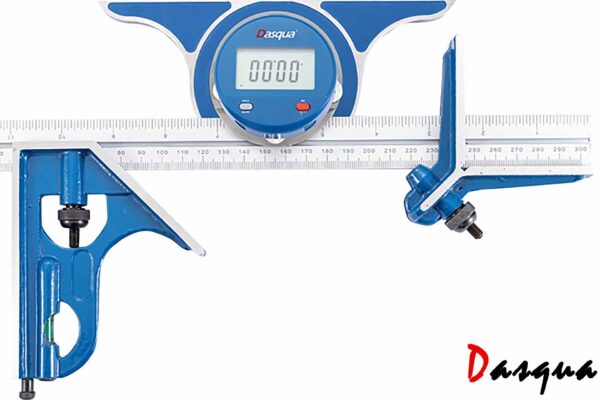

* This new design from Dasqua – 4pc Combination square with Digital Protractor
* Center Ruler has 300mm range, Readings front: 0.5mm & 1/32″, Reverse 1.0mm & 1/64″
* Accuracy: +/- 0.15mm
* Square accuracy: 90deg 8′, 40deg 10′
* Digital Protractor: Range 180deg, accuracy +/- 10′ ( within 0.2deg )
* Fine adjustment screw applied
* INC Measuring
* Other features Inc: Data hold / Setting Zero / Angle & degree conversion, Fine adjustment
Weight | 1.9 kg |
---|---|
Dimensions | 0.36 × 0.2 × 0.06 cm |
