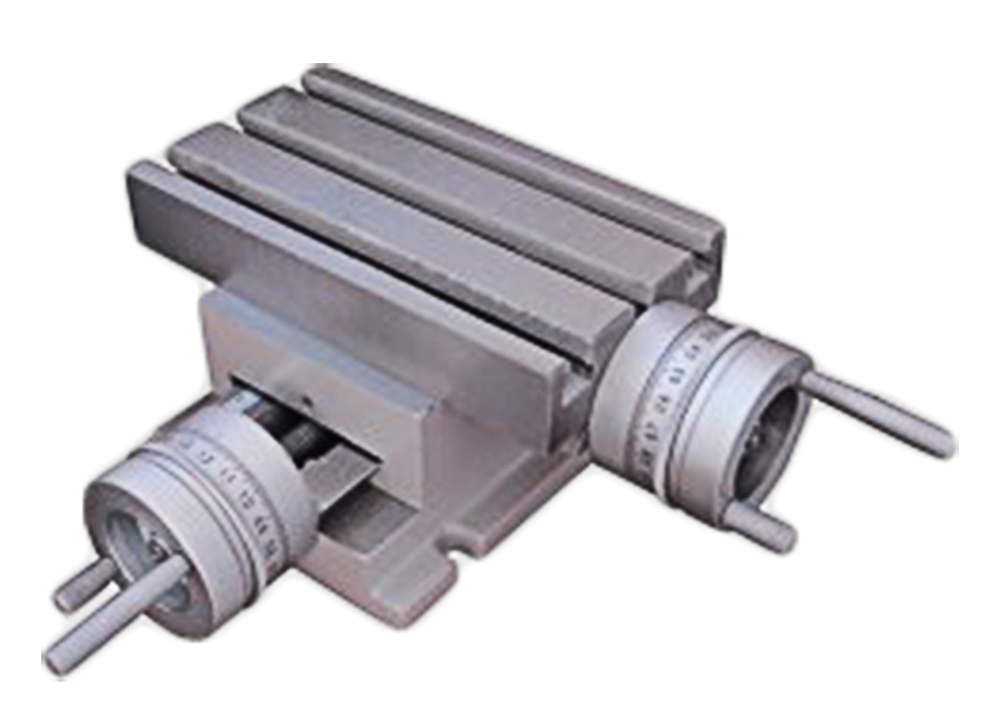

DESCRIPTION: | Compound Table |
---|---|
MODEL: | APK-201 |
TABLE SIZE: | 185 x 100mm |
X TRAVEL: | 80.0mm |
Y TRAVEL: | 50.0mm |
BASE SIZE: | 170 x 130mm |
O/A HEIGHT: | 102mm |
TEE SLOT SIZE | 10.0mm |
NUMBER OF TABLE SLOTS | 3 |
WEIGHT NETT/GROSS: | 10 / 11.13kg |
VOLUME: | 0.0144cm |
PACKING SIZE L X W X H | L 290mm X W 280 X H 180 |
Description
SKU : CPT100224
Price per Unit
$295.00 (Exc GST)
$339.25 (Inc GST)
FEATURES:
* Ideal table for drilling or milling
* Has three 10.0mm ‘T’ slots across the table
* Comes on square base
* Machined dovetail slideways on X & Y movements ensure smooth and accurate travel
* Gibs a fitted to both slideways and can be adjusted over time if required
* This model is fitted with dust cover to protect swarth from lodging in base
* Longitudinal travel has graduation strip accurate referencing
Weight | 11.13 kg |
---|---|
Dimensions | 0.3 × 0.3 × 0.19 cm |
Specifications
Description
Reviews (0)
Be the first to review “COMPOUND TABLE: 185 X 100MM” Cancel reply
Shipping & Delivery
Related products
COMPOUND TABLE: 225 X 175MM (PRECISION)
SKU:
CPT100120
$295.00
* This table can be retrofitted to other machines
* Table is hardened and precision ground
* T-Slots x 2 for holding down workpiece
* Metric graduation scale fitted to front of table
* Adjustable stops at each end of table
* Fitted with table locking clamps
* Cast hand wheels on X & Y travel are graduated for fine adjustment
* Base has slots for fixing to other tables
COMPOUND TABLE: 730 X 210MM
SKU:
CPT100132
$1,068.00
COMPOUND TABLE: 300 X 140MM
SKU:
CPT100150
$295.00
* This is a precision compound table which is an ideal table for drilling machine where fine adjustment is critical * Bolts on to machine table * machined dovetail slideways on X & Y movements ensure smooth and accurate travel while machining * Gibs a fitted to both slideways and can be adjusted over time if required *
COMPOUND TABLE: 230 X 175MM
SKU:
CPT100228
$435.00
* Ideal table for drilling or milling
* Has two 12.0mm 'T' slots across the table
* Comes on square base
* Machined dovetail slideways on X & Y movements ensure smooth and accurate travel
* Gibs a fitted to both slideways and can be adjusted over time if required
* This model is fitted with dust cover to protect swarth from lodging in base
* Longitudinal travel has graduation strip accurate referencing
COMPOUND TABLE: 425 X 240MM WITH STEEPER MOTOR
SKU:
CPT100305
$0.00
* Ideal table for drilling or milling
* Has two 12.0mm 'T' slots across the table
* Comes on square base
* Machined dovetail slideways on X & Y movements ensure smooth and accurate travel
* Gibs a fitted to both slideways and can be adjusted over time if required
* This model is fitted with dust cover to protect swarth from lodging in base
* Longitudinal travel has graduation strip accurate referencing
COMPOUND TABLE: 600 X 240MM WITH STEEPER MOTOR
SKU:
CPT100310
$2,850.00
* This table can be retrofitted to other machines
* Table is hardened and ground with T-Slots for holding down workpiece
* Graduation scale fitted to front of table
* Adjustable stops at each end of table
* Fitted with table locking clamps
* Cast hand wheels
* Comes with stepper motor fitted for automation
COMPOUND TABLE: 730 X 210MM WITH STEEPER MOTOR
SKU:
CPT100315
$0.00
* This table can be retrofitted to other machines
* Table is hardened and ground with T-Slots for holding down workpiece
* Graduation scale fitted to front of table
* Adjustable stops at each end of table
* Fitted with table locking clamps
* Cast hand wheels
* Comes with stepper motor fitted for automation
