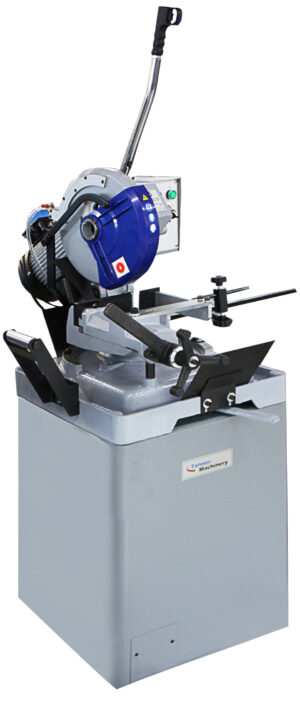

| MODEL | CS-350SA |
|---|---|
| MOTOR | 1.5 Kw |
| MAX CUT90DEG | 95mm Round |
| MAX CUT90DEG | 110 x 100mm Rect |
| MAX CUT90DEG | 95 x 95mm Square |
| MAX CUT45DEG | 90mm Round |
| MAX CUT45DEG | 85 x 80mm Rect |
| MAX CUT45DEG | 80 x 80mm Square |
| BLADE SIZE | 350mm |
| BORE | 40.0mm |
| SPEED | 38 / 19rpm |
| VOLTAGE | 400v 3 Phase |
| WEIGHT NETT/GROSS | 290kg |
| VOLUME | 1.1088cm |
| PACKING SIZE L X W X H | 1100 x 630 x 1600mm |
Description
SKU : COM105432
Price per Unit
$5,900.00 (Exc GST)
$6,785.00 (Inc GST)
FEATURES:
* Centrically Tensioning Vice
* Quadruple Guiding with individual adjusting jaws
* Coolant tank with pump
* Adjustable Auto pneumatic down feed. Pneumatic quick release vice.
* Angular scale allows precise working -45 to +45 deg
| Weight | 290 kg |
|---|---|
| Dimensions | 1.1 × 0.63 × 1.6 cm |
