| Description | Cyclone Extraction System |
|---|---|
| Capacity (cfm) | 3600 |
| Static Pressure (Pa) | 4,000 |
| Drum Capacity (gal) | 60 |
| Noise Level (dB) | 75 – 85 |
| Dust Inlet (mm) | 100 (x4) |
| Motor Power (kW) | 3.75 |
| Voltage (V) | 415 |
| Weight (kg) Machine | 159/190 |
| Weight (kg) Caninester | 35/45 |
| Volume (cm) Machine | 5.023 ( Total ( |
| Packing Size L x W x H | 1690 x 1170 x 2540mm |
Description
SKU : DE-110115
Price per Unit
$9,650.00 (Exc GST)
$11,097.50 (Inc GST)
FEATURES:

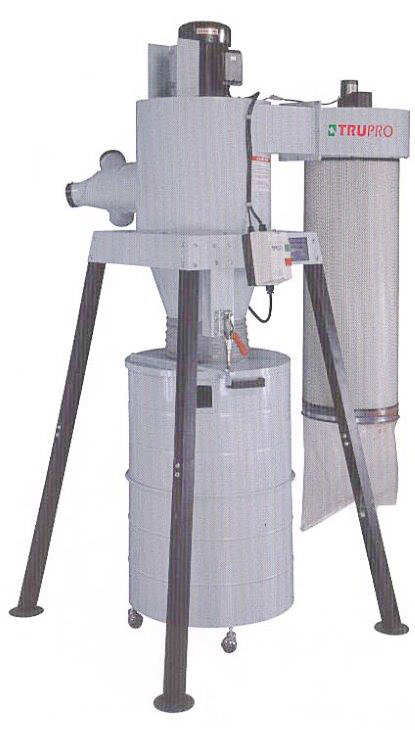

* Mobile cyclone dust extractor, suitable for small to medium sized workshops.
* Able to connect to four machines using the 4 x 100mm adaptor
* Well built units with a steel impeller.
* Nice and quiet operation
* Automatic filter cleaning for consistent airflow.
* A manometer gives a quick, visual indication of performance.
* Wheeled waste bin, makes the task of waste disposal easier.
* All round extractor, able to cope with all but the largest machines
* Supplied with remote control
| Weight | 245 kg |
|---|---|
| Dimensions | 1.6 × 1.17 × 2.54 cm |
