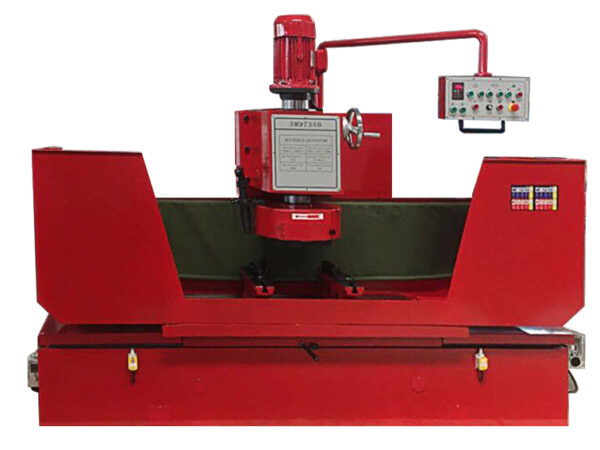

DESCRIPTION | Cylinder Head & Block Grinder |
---|---|
MODEL | 3M9735 |
MAX GRINDING LENGTH | 1500mm |
MAX GRINDING WIDTH | 350mm |
MAX GRINDING HEIGHT | 800mm |
WORKING TABLE SIZE | 1500 X 500mm |
WHEEL SIZE | 410mm |
WHEEL SEGMENTS | 10pcs |
HEAD VERTICAL TRAVEL | 800mm |
FEED WHEEL GRADUATION | 0.1mm |
WHEEL TRAVERS SPEED | 0-3000m/min |
MOTOR SPEED | 4kw 1400 – 700rpm Variable |
TRAVERSE MOTOR | 0.75kw |
PUMP | 0.4kw |
TANK CAPACITY | 140 Litres |
WEIGHT NETT/GROSS | 2.500/3.000kg |
VOLUME | 7.6648cm |
PACKING L X W X H | 2850 X 1300 X 2200mm |
Availability : Enquire Now
Price per Unit
ex-gst
$0.00Inc-gst
$0.00CYLINDER BLOCK & HEAD GRINDER: MAX LENGTH 1500MM
SKU : AUT10001080
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* The surface grinding-milling machine, model MG-1400 is a medium size wet grinding machine
* Sturdy and well proportioned design
* Suitable for small and medium size engine reconditioning as well as industrial grinding
* Stability of the machine is constant regardless of the height of the item to be ground
* Spindle motor and traverse motor are inverter motor ( stepless speed) with easy operation
* Motor has low vibration level
* Feeding screw and traverse screw are ball types, with low damping, stable and durable
* The slider guideway is designed with plastic-coated guide rails
* This provides good vibration absorption, strong wear resistance and high precision
* Spindle sleeve is chrome plated and ground, with a bright and rust-proof surface
* Integrated electric control modules, no – spark contacts, with safe and reliability
* Spindle feeding is provided with braking device to avoid vibration
* Separated circuits of water and electric, with safe and reliability
* Equipped with chain sleeve for protection
* Sheet metal with plastic coating, beautiful and durable surface
* By using a magnetic chuck, available as extra equipment, the range of applications of the machine as an industrial grinding machine is widely extended.
Weight | 3600 kg |
---|---|
Dimensions | 3.1 × 1.15 × 2.15 cm |
