SKU : DG-100036

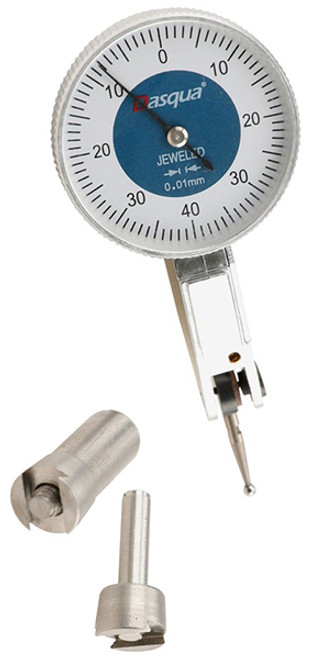

DescriptionDIAL TEST INDICATOR: DASQUA RANGE 1.6MM X 0.01MM DIV
SKU: DG-100036
Availability: Array
Price per Unit
$120.00 (Exc GST)
$138.00 (Inc GST)
FEATURES:
* This Dasqua dial test indicator has a jewel movement and twice range
* Easy read tilted 25.0mm dial
* With extra contact point
* High precision contact point
* Shock resistant
* Automatical reversal
* Swvel arm movement 210 degrees
* Clamping shank diameter is 8.0mm
* Probe length is 13.5mm
* Precision gear driven design for smooth movement
* High precision contact point is hardened and precision ground
Specifications
PARAMETERS OF DIAL TEST INDICATOR: DASQUA RANGE 1.6MM X 0.01MM DIV
| DESCRIPTION | Dial Test Indicator |
|---|---|
| RANGE | 1.6mm |
| MODEL | 5221-1115 |
| READING | 0.01mm |
| FACE DIAMETER | 29.0mm |
| MOUNT TYPE | Stem or Dovetail |
| MOVEMENT | Jeweled 6, DIN2270 |
| WEIGHT NETT/GROSS | 0.270kg |
| VOLUME | 0.0011cm |
