* This 4" Tilting rotary table is a very versitile unit * Tilting range is 0 - 90 Degrees with positive locking * Table diameter is 100mm * Worm gear ratio 1:36 = 1 rotation will increase by 10 degrees * Graduated indexing dial to 360 derees * Centre height in verticle = 66.0mm approx Hand wheel is graduated in 10 min divisions and can be set at zero * Comes with tee slots in table * Can be bolted in verticle or horizontal position

* Table is made from high density Meehanite casting with ground finish * Tested by Heidenhain electronic testing equipment to ensure the utmost quality * Spindle end is supported by taper roller bearings to ensure stablity under cutting conditions * Worm is hardened and ground and has a ratio of 90:1 * The worktable is graduated to the full 360ø so that one turn of the handle moves the table through 4ø * Micro collar is graduated in steps of 1'min and vernier scale makes settings down to 10 seconds possible * These rotary tables are popular for their excellent performance practical design and affordable cost * Widely used for circular cutting work angle setting boring * Controller has three wires, one of them is for powercord conected to DC 24W - 48V. Motor should be conected to 4 pin aviation socket and motor encoder should be connected to the 6 pin aviation conector

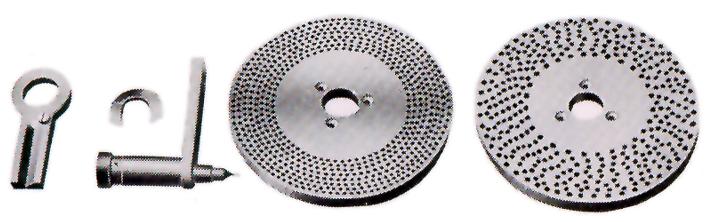

DESCRIPTION Dividing Plates TYPE DP-3 Indexing NUMBER OF PLATES DIAMETER TO SUIT HV-16 Rotary Table WEIGHT NETT/GROSS 4.424/4.426kg VOLUME 0.0029cm

* This Tailstock is suitable for the Vertex 8 & 10 Rotary tables and also the CC CS-6 8 Indexing fixtures * These tailstocks can also be used for other types of indexing fixtures *
