| BRAND | LGF Zeta 3500 |
|---|---|
| TYPE | Double Mitre Saw |
| BLADE SIZE | 400mm |
| CLAMPING | Air X 2 Clamps |
| MOTOR | 2Hp |
| VOLTAGE | 3 Phase 380V |
| CUTTING CAPACITY | |
| SPINDLE SIZE | 30.0mm |
| WEIGHT NETT / GROSS | 500.00/560.00kg |
| VOLUME | 7.680cm |
Description
SKU : ALU302000
Price per Unit
$33,000.00 (Exc GST)
$37,950.00 (Inc GST)
FEATURES:
* This LGF ZETA double mitre saw combination is ideal for the fabrication of aluminium joinery.
* Both saw heads are capable of compound mitres.
* Each table has horizontal air clamping.
* Central controls make the pneumatic cutting action simple and hands free.
* Equipped with auto lubrication for smooth cutting and clean finish.
* Comes with central workpiece support.
| Weight | 560 kg |
|---|---|
| Dimensions | 3 × 1.6 × 1.6 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
TWIN HEAD SAW: MERRIT CHINA
SKU:
ALU100126
PORTABLE SAW: LGF ARES
SKU:
ALU301000
MITRE SAW; QCS-400 UP CUTTING
SKU:
ALU301040
MITRE SAW; LGF KRONOS 350MM
SKU:
ALU301050
* LGF machines are made in Italy to strict CE standards.
* Manual down stroking of the head by means of ergonomic safety lever.
* Blade protection cover with automatic closing by means of lever.
* Head rotation on its own axis at -45° / 45° with mechanical locking system.
* Manual locking system on working bench at any intermediate degree.
* Rotating working bench.
* Equiped with air clamping and mist spray.
* Comes complete on heavy duty stand.

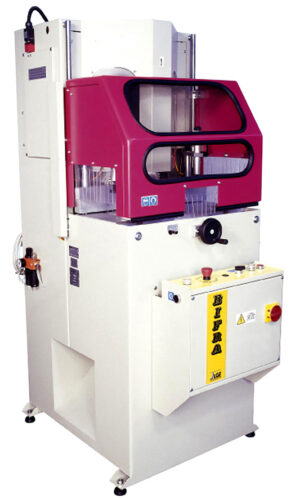

V NOTCHER: LGF BIFRA
SKU:
ALU301250
* High quality Italian machine.
* Unique two blade design V-notching machine.
* Automatic downfeed of the saw carriage.
* Pneumatic adjustment of the saw blade feeding.
* Hand wheel operated work bench with depth stop.
* Full protection of the working area with automatically closing hoods.
* Vertical pneumatic clamping system with rubber pads.

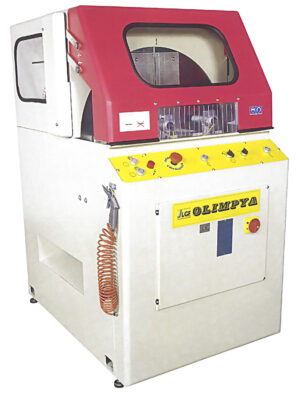

AUTO CUT SAW: LGF OLIMPYA
SKU:
ALU301300
* This LGF automatic cut off saw offers the utmost in cutting safety and speed.
* Fitted with auto pneumatic clamping and mist spray unit for a clean cutting cycle.
* Head can be tilted to -45° / 90° / 45° by switch.
* Possibility of performing all angles from 30° left to 30° right.
* Fully enclosed working area.
* Can be fitted with blades from Ø 500mm - Ø 550mm.
MITRE SAW: LGF PENTA MITRE
SKU:
ALU301350
* High quality Italian machine.
* Rising blade with adjustable feeding.
* Rotating working bench, mechanical locking devices at 90°/45°/-45°, and pneumatic brakes for intermediate degrees.
* Tilting blade can cut at any angle between 80° and -80°.
* Digital display shows the intermediate degree cuts.
* Complete with trimming fence for performing trim cuts.
* Full safety guarding around the work table.
* Horizontal pneumatic clamping system with rubber pads.
* Can be fitted with blades from Ø 500mm - Ø 530m.
* Spray mist lubrication.
DOUBLE MITRE SAW: LGF DELTA
SKU:
ALU302100
* This LGF Delta double mitre saw combination is ideal for the fabrication of aluminium joinery.
* Both saw heads are capable of compound mitres.
* Each table has horizontal air clamping.
* Equipped with electronic positioner with up to 99 memory allocations.
* With monochrome screen and industrial integrated keyboard.
* Automatic electronic movement of the right head.
* Pneumatic tilting heads from 90° to +45°.
* USB port to save/upload cutting lists and programmes.
* Full protection of the saw blades with automatically closing hoods.
* Horizontal pneumatic clamping system with rubber pads.
* Automatic nebulizer lubrication.
