| Capacity (mm) | 32 |
|---|---|
| Table Size (mm) | 540 x 470 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 75 – 3200 |
| Spindle Taper | MT4 |
| Quill Diameter (mm) | 74 |
| Quill Stroke (mm) | 115 |
| Swing (mm) | 540 |
| Column Diameter (mm) | 115 |
| Slot table (mm) | 14 |
| Motor (kW) | 1.1 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 340 / 370 |
| Volume (m³) | 0.9675 |
| Packing Size L x W x H (mm) | 760 x 670 x 1900 |
Description
SKU : DMC359079
Price per Unit
$3,600.00 (Exc GST)
$4,140.00 (Inc GST)
FEATURES:
* The WDM30A drilling machine with auto feed.
* Heavy duty slotted base & table.
* Adjustable depth stop.
* Flexible worklight.
* Tapping switch.
* Coolant system.
| Weight | 370 kg |
|---|---|
| Dimensions | 0.76 × 0.67 × 1.9 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
DRILL: GEARED HEAD GHD-T25A 3PH
SKU:
DMC348942
DRILL: GEARED HEAD ZX40H MT4 3PH 12 SPEED
SKU:
DMC359075
DRILL: GEARED HEAD WDM30B MT4 1PH
SKU:
DMC359080
DRILL: GEARED HEAD JZB5032 MT4 1 PH
SKU:
DMC359081
DRILL: GEARED HEAD ZS-40APS AUTO 3PH
SKU:
DMC359152

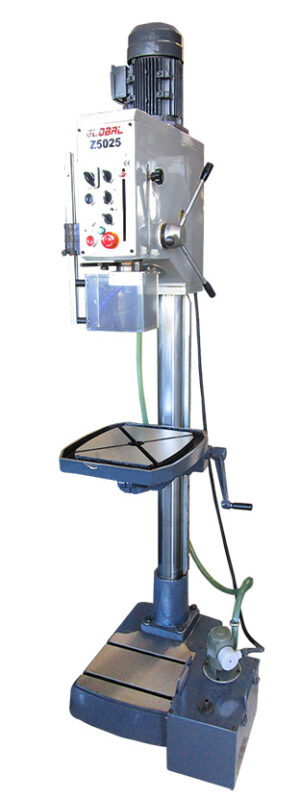

DRILL: GEARED HEAD Z5028 MT3 3 PHASE 400V
