| Capacity (mm) | 32 |
|---|---|
| Table Size (mm) | 470 x 420 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 150 – 2,700 |
| Spindle Taper | MT4 |
| Quill Diameter (mm) | 70 |
| Quill Stroke (mm) | 120 |
| Swing (mm) | 508 |
| Column Diameter (mm) | 92 |
| Table Slot (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 138 / 148kg |
| Volume (m3) | 0.4830 |
| Packing Size L x W x H (mm) | 1500 x 700 x 460mm |

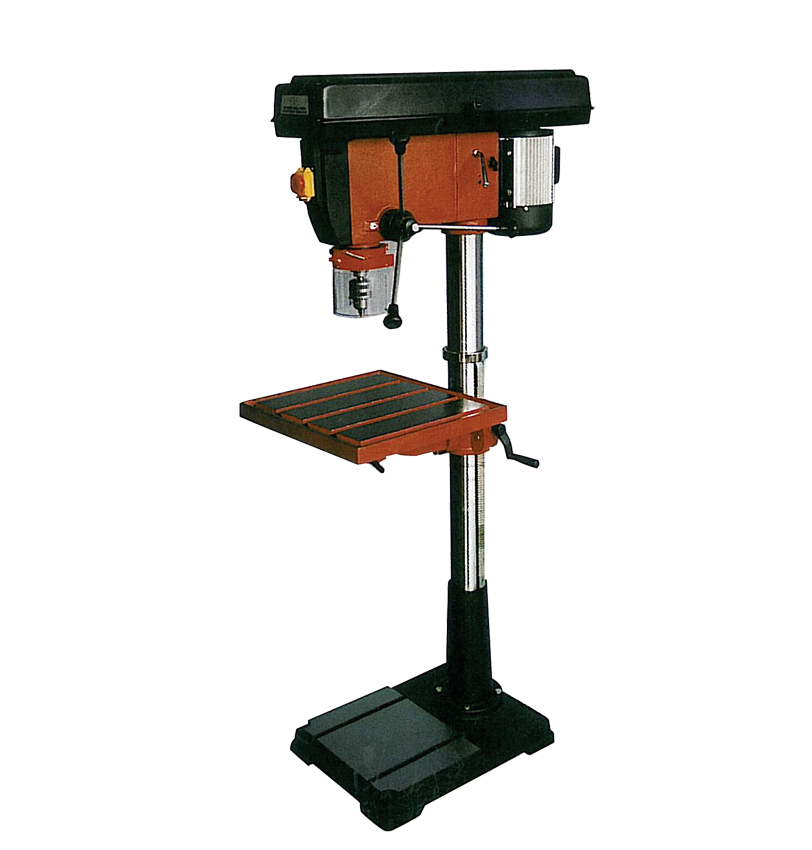

Description
SKU : DMC348439
Price per Unit
$1,500.00 (Exc GST)
$1,725.00 (Inc GST)
FEATURES:
* Industrial model.
* Powered by quiet, fan cooled motors.
* Robust construction for accurate drilling.
* Change speeds by adjusting the drive belts.
* Rack & pinion system for adjusting table height.
* Worklight between the column & the spindle.
* Round table can tilt ±45° and rotate 360°.
* Spring loaded chuck guard with flip-up screen.
* Aluminium motor housing.
* Magnetic safety switch.
* Quick action belt tensioning lever.
* Cast one piece handle.
