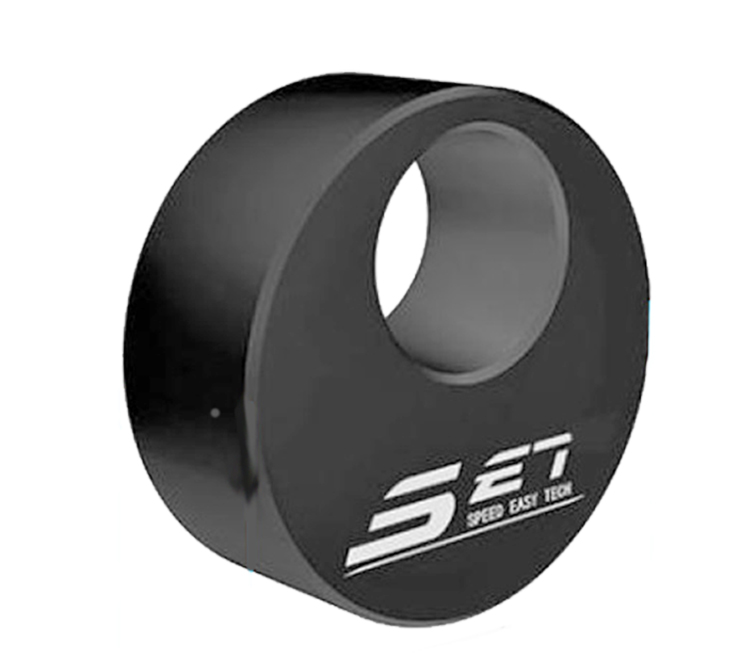

| DESCRIPTION | Eccentric Block |
|---|---|
| MODEL NUMBER | PX2863 |
| MEASUREMENT A | ø100.0mm |
| MEASUREMENT B | 75.0mm |
| HOLE | ø28.0mm |
| WEIGHT NETT/GROSS | 0.50kg |
| VOLUME | 0.0001cm |
Description
SKU : WLT20001343
Price per Unit
$59.00 (Exc GST)
$67.85 (Inc GST)
FEATURES:
* Eccentric block can be infinitely adjust positioning parts, perfectly through hole positioning can achieve 360 ° adjust to save space and complete the function *
| Weight | 0.5 kg |
|---|---|
| Dimensions | 0.1 × 0.03 × 0.03 cm |
