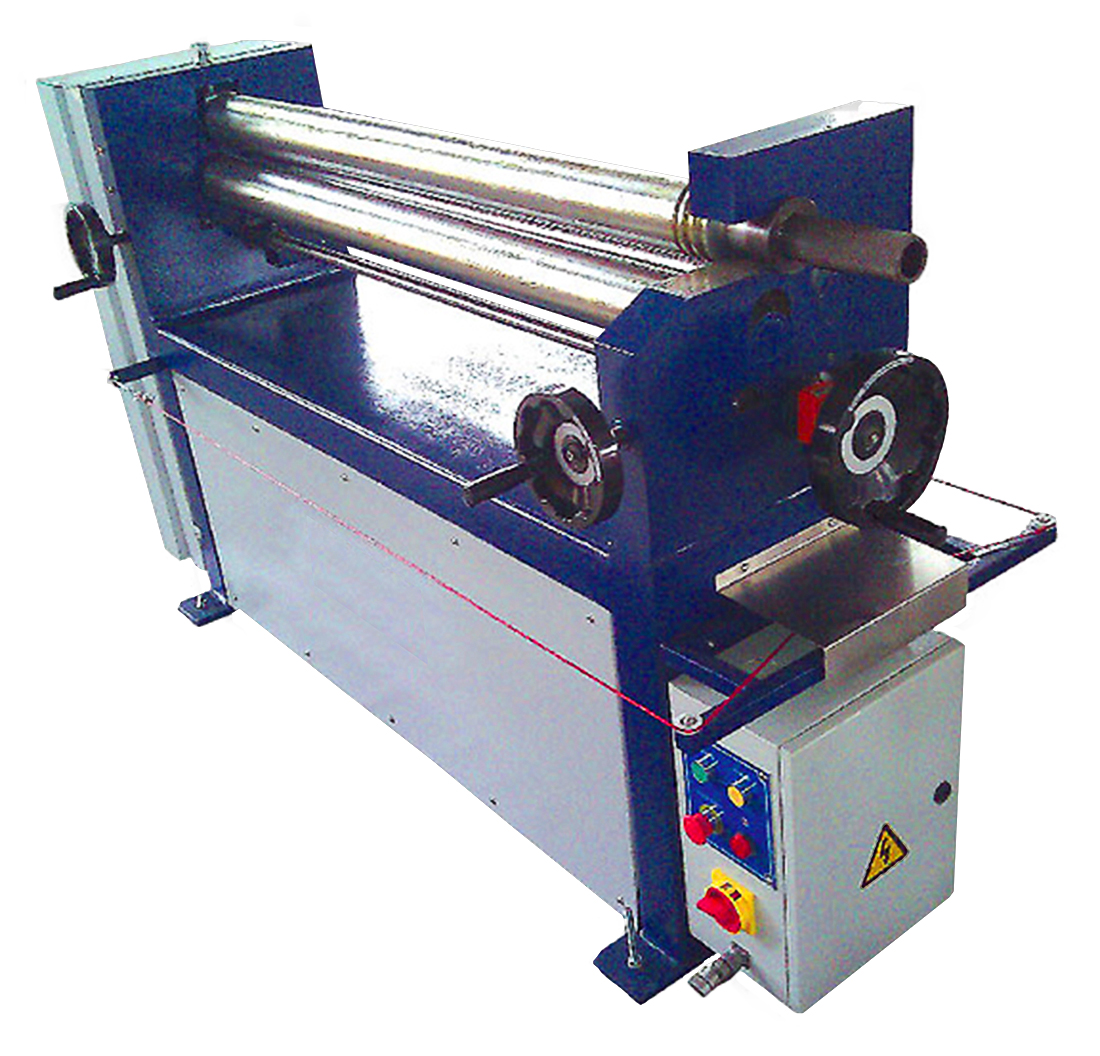

| DESCRIPTION | Pinch Rolls Width 2000mm |
|---|---|
| CAPICITY MILD STEEL | 4.0 mm |
| TOP ROLL DIAMETER | 150.0mm |
| BOTTOM ROLL DIAMETER | 150.0mm |
| MIN FORMING DIAMETER | 225 Dia |
| RISE & FALL | Manual |
| MAIN MOTOR | 3.0kw |
| Dimensions (LxWxH) | 2530 x 740 x 1200 mm |
| WEIGHT NETT/GROSS | 2,380/2,510kg |
| VOLUME | 2,0424cm |
Description
SKU : ROL131502
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:
* Initial pinch rolls with pre-bending
* Motorised up & down rear curving roll enables quick & easy pre-bending
* Digital readout display on rear curving roll position
* Mobile foot pedal control with digital readout display
* Two rolls are powered by reduction gearbox drive system
* Swing out top roller enables cone or cylinder to be removed
* Safety wire interlock system with emergency shut-off
* Rolls include wiring grooves
| Weight | 2510 kg |
|---|
