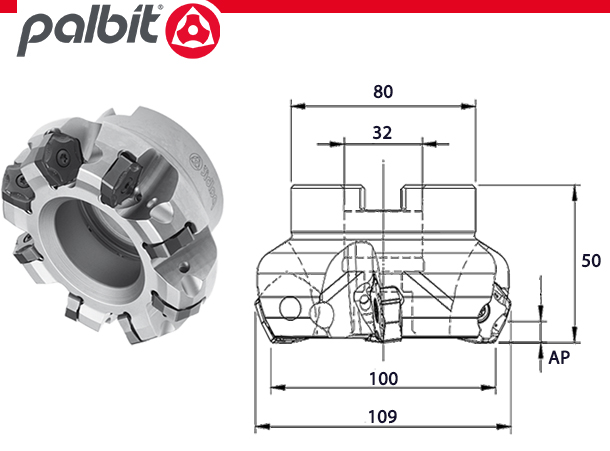

| Brand | Palbit |
|---|---|
| Model | Plus 90260 |
| Diameter (mm) | 100 |
| Shank | 32mm arbor mount |
| Inserts (no.) | 10 |
| Inserts (type) | PN..1105 |
| Max AP (mm) | 5 |
| Weight (kg) | 1.745 |
| Volume (m³) | 0.002 |
Description
SKU : FC-9555562
Price per Unit
$689.43 (Exc GST)
$792.84 (Inc GST)
FEATURES:
* The PLUS series features a highly effective 45° face mill with very strong pentagonal inserts with positive cutting angles.
* The result is effective machining with 10 cornered inserts for lower costs.
* Wiper edge for better surface finish.
* Long tool life with MEGA coating and excellent chip control.
