DESCRIPTION | Hydraulic Folder Box & Pan |
---|---|
MAX WIDTH | 3050mm |
FINGER LENGTHS | 230mm |
HEIGHT UNDER FINGERS | |
MAX DEPTH OF PAN | |
CAPACITY | 4.0mm Mild Steel 2.2mm Stainless Steel |
MAIN MOTOR | 4kw |
WEIGHT NETT/GROSS | 3,928kg |
VOLUME | 13.7970 |
PACKING SIZE L X W X H | 3650mm x 2100 x 1800mm |
Availability : Enquire Now
Price per Unit
ex-gst
$39,000.00Inc-gst

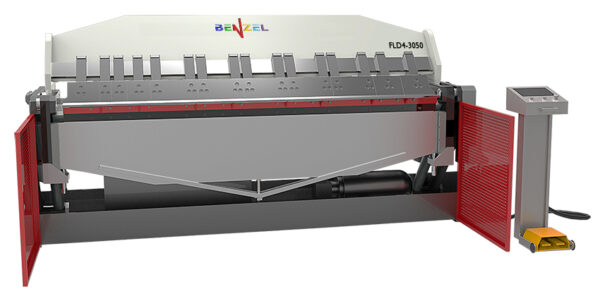

$44,850.00FOLDER: HYDRAULIC 3050MM X 4.0MM (BZ3050) 2 Axis
SKU : FLD131904
Price per Unit
$39,000.00 (Exc GST)
$44,850.00 (Inc GST)
FEATURES:
* Heavy duty steel fabricated frame provides rigidity and accurate bends
* Two operation mode with motorised back gauge
* Segmented top blade
* Bending Angle controlled by Digital readout
* Roving foot pedal incorporates control panel for maximum flexability
* Easy to use single angle programable controller incorporating digital readout for angles from 0 – 130deg
* Extended fingers allow bending of pans or boxes to a depth of 230mm
* The ground segmented fingers can be repsistioned to suit many applications
* Auto cycle after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position
* Ideal for any workshop requiring a 4mm capacity machine *
Weight | 4310 kg |
---|---|
Dimensions | 3.65 × 2.1 × 1.8 cm |
