| MODEL | CPD20SA-20 |
|---|---|
| CAPACITY | 2000Kg |
| MAX HEIGHT | 6000mm |
| MAST HEIGHT LOWERED | 2660mm |
| MINIMUM HEIGHT | 90.0mm |
| FORK LENGTH | 1070mm |
| LENGTH O/A | 3100mm |
| FORK ADJUSTABLE RANGE | 300 – 930mm |
| BODY WIDTH O/A | 1130mm |
| WHEEL SIZE (FRONT) | Front 200/50-10 Rear 140/55-9 (Twin) |
| SIDE SHIFT FITTED | Yes |
| LIFTING SPEED-LOADED/UNLOADED | 0.05/0.08m/s |
| BRAKING | Mechanical |
| LIFTING MOTOR | 1.5kw |
| BATTERY | 48v/560ah (Included) |
| BATTERY WEIGHT | 800kg |
| CHARGER | |
| WEIGHT NETT/GROSS | 3450kg |
| VOLUME | 9.3180cm |
| PACKING SIZE L X W X H | 2145 x 980 x 1745mm |
Description
SKU : HJP299900
Price per Unit
$35,500.00 (Exc GST)
$40,825.00 (Inc GST)
FEATURES:

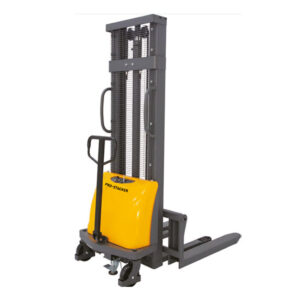

* This powerful electric pallet stacker comes complete with 120Ah battery and charger
* Compact design with strong steel construction
* Smooth control when lifting under load and walk behind
* Main lift motor is 1.5kw
* Hydraulic pump is from Germany
* Drive motor is brushless type
* Braking system by machanical
* Explosion proof valve is fitted to cylinder in case of failier
* Steering mechanism is driven by chains and requires small sering force
* Fitted with foot brake for added safety
This electric stacker conforms to ISO3691-1, EN1175-1, EN16307-1
| Weight | 3450 kg |
|---|---|
| Dimensions | 3.1 × 1.13 × 2.66 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
