| DESCRIPTION | Forming Ring |
|---|---|
| TO SUIT | 3 Jaw Chuck 10″ |
| MODEL NUMBER | FM010 |
| WEIGHT NETT/GROSS | 2.650/3.0Kg |
| VOLUME | 0.0041cm |
Description
SKU : LC-149110
Price per Unit
$395.00 (Exc GST)
$454.25 (Inc GST)
FEATURES:
* These forming rings are to suit 3 jaw lathe chucks when mounting new soft jaws. These jaws will need machining to have repeat accuracy .
Steps to follow:
1. Set up jaws to the required diamer.
2. Adjust boring ring so the pins are are located in the holes of the new kjaws.
3. Lock up chuck so the boring ring is clamped up firmly.
4. Machine the jaws to the required diameter.
5. Remove the forming ring.
| Weight | 2.65 kg |
|---|---|
| Dimensions | 0.29 × 0.28 × 0.05 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products

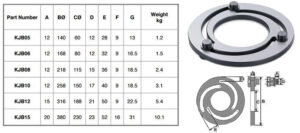

FORMING RING: 3 JAW 5″
