| MODEL | WP1-130E |
|---|---|
| RATED KW | 3.5KW 50hz |
| CURRENT RANGE | 40-130Amp |
| WELDING ROD RANGE | 1.6 – 3.2mm |
| ENGINE TYPE | API170F OHV 25 Deg Tilt |
| MAX RPM | 3600rpm |
| FREQUENCY | 50Hz |
| DISPLACEMENT | 223cc |
| OIL CAPACITY | 1.1 Litre |
| WELDING OULETS | EW35-50 Female |
| OUTPUT | DC60A.DC120A Two stage DC welding output |
| FUEL TANK CAPACITY | 15 Litre (8 hrs Running) |
| VOLTAGE REGULATOR | AVR |
| START TYPE | Manual |
| WEIGHT NETT/GROSS | 40.0/42.0kg |
| VOLUME | 0.1376cm |
Description
SKU : GEN600328
Price per Unit
$1,700.00 (Exc GST)
$1,955.00 (Inc GST)
FEATURES:

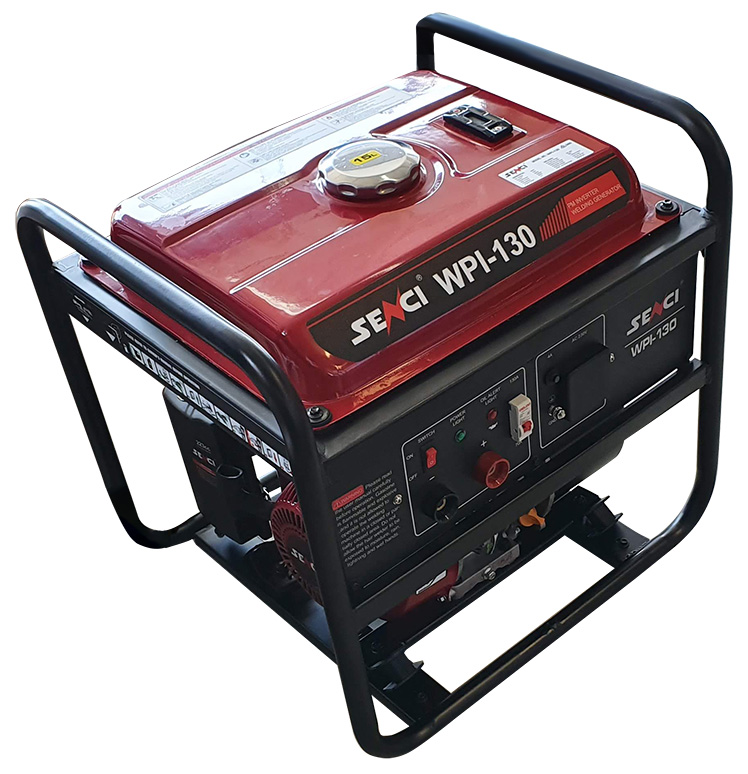

* This WPI-130 Digital inverter welder/generator comes with manual pull start.
* Fitted with AVR voltage regulator for constant voltage delivery.
* Capabil of welding rods from 1.6mm to 3.2mm.
* Dual purpose machine with 230v 3 pin plug outlet for running a light or grinder etc 1090
* Fitted with EW35-50 large size welding pin outlets.
* Large 15 litre fuel tank giving 8hrs run time.
* DC Welding and AC generator output.
* DC60A.DCI120A Two stages DC welding
* Comes with 350A x 8M welding and earth leads with holder and earth clamp *
| Weight | 42 kg |
|---|---|
| Dimensions | 0.61 × 0.47 × 0.48 cm |
