DESCRIPTION | Rockwell Hardness Tester |
---|---|
BRAND | Dasqua 1804-3609 |
MAX LOAD | 150kg (147IN) |
LOAD RANGE | 60, 100, 150kg |
INITIAL RANGE LOAD | 10.0kg (98.07N) |
MAX TEST HEIGHT | 175mm |
DEPTH OF THROAT | 165mm |
MAX DEPTH OF SPINDLE BELOW BASE | 50.0mm |
CONVERSION STANDARDS | ASTM, DIN |
LANGUAGE OPTIONS | English, Chinese, German, Portuguese, Turkish, Cxech, Korean |
CORRECTION RANGE | -3.0HR, to +3.0HR Step D.1HR |
DATA MEMORY | 2000 Single Measuring & Curve analysts Results Reviewing and Analysis |
DATA OUTPUT | Optional Blue Tooth Mini Printer |
MACHINE HEIGHT | 630mm |
BASE SIZE | 180 X 465mm |
POWER SUPPLY | AC220v 50hz |
WEIGHT NETT/GROSS | 90/110kg |
VOLUME | O.258 |
PACKING L X W X H | 470 x 620 x 900mm |
Availability : Enquire Now
Price per Unit
ex-gst
$6,929.60Inc-gst

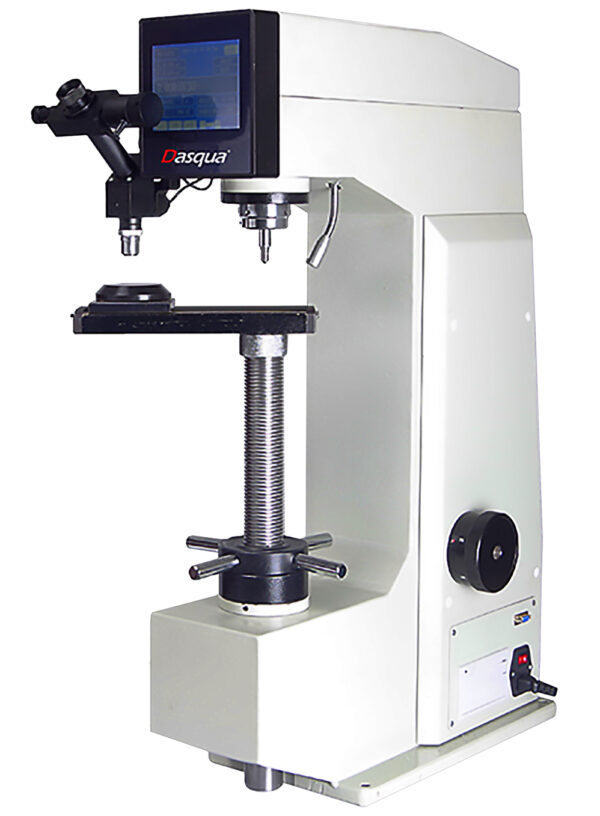

$7,969.04HARDNESS TESTER: EHT-3B ROCKWELL DIGITAL DASQUA
SKU : HRT100210
Price per Unit
$6,929.60 (Exc GST)
$7,969.04 (Inc GST)
FEATURES:
* The Rockwell Hardness Tester is a simple but ruggedly constructed machine available for quick and easy testing of all ranges of material hardness
* The minute surface impression can be used to test finished goods
* The harness number is read directly on the digital screen
* The Rockwell Hardness number is derived from the net increase in depth of impression as the load on a penetrator is increased from a fixed minimum load to a higher load and then returned to the minimum load
* ROCKWELL SCALE:
HRA,HRB, HRC, HRD, HRE,HRF,HRG, HRH, HRK, HRL, HRM, HRR, HRS, HRV
* Preliminary Test Force: 10kgf,98.DNT. Permitted error ±2.0%
* Tatal Force: 60kgf588.4NI, 100kgf,980.7NJ. 150kgfI147IN. Permitter Error ±1.0%
Duration Time: Adjustable 1-60s
* Hardness indication: 5.2″ Touch screen resolution 640 x 480
* Loading control: 0.1hr
* Hardness conversion: HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HRB, HR3ON
* HR45N, H5, HRF, HR15T, HR45T,
Weight | 110 kg |
---|---|
Dimensions | 0.61 × 0.47 × 0.9 cm |
