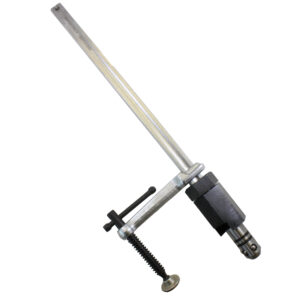

| DESCRIPTION | Hold Down Clamp |
|---|---|
| MODEL NUMBER | M30114 |
| THROAT | 120mm |
| HEIGHT | 400mm |
| RAIL DIAMETER | 22.0 x 10.6mm |
| CLAMPING TYPE | Rapid Lock |
| MAXIMUM LOAD | |
| LOCKING PIN DIA | 28.0mm |
| WEIGHT NETT/GROSS | 2.2kg |
| VOLUME | 0.0043cm |
Description
SKU : WLT20001292
Price per Unit
$82.00 (Exc GST)
$94.30 (Inc GST)
FEATURES:
* These rapoid Lock clamps are manufactured by Maxpower
* Designed for rapid lockdown on welding tables
* Fitted with 28.0mm locking pins
Positive locking bar
| Weight | 2.2 kg |
|---|---|
| Dimensions | 0.3 × 0.12 × 0.12 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
WELDING TABLE: 3D 2400 X 1200 X 200MM 28.0MM 6 LEGS
SKU:
WLT20001106
WELDING TABLE: 3D 4000 X 1500 X 200MM 28.0MM HK
SKU:
WLT20001108

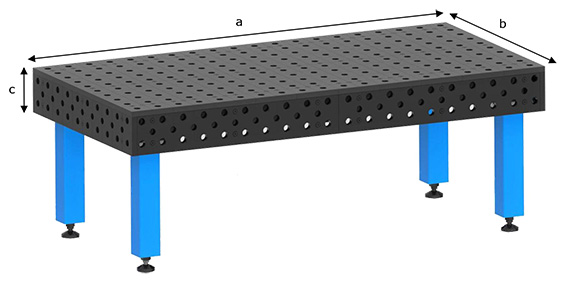

WELDING TABLE: 3D 2000 X 1000 X 200MM CT
