* This welding table is manufactured fron one piece cast iron (HT200-250) with fine mill Finish, finishment 3.2 * Casting surface hardness to HB170-240 * Comes with 28.0mm holes

* TJ series 90 ° pipe clamp, make accurate powerful clamping 180 ° possible * * Horizontal bar can adjust the range of 40-180mm, the vertical bar has different length specifications, and the adjustment range is also different * * The vertical tube increases the adjusting ring, which can help the adjustment better *

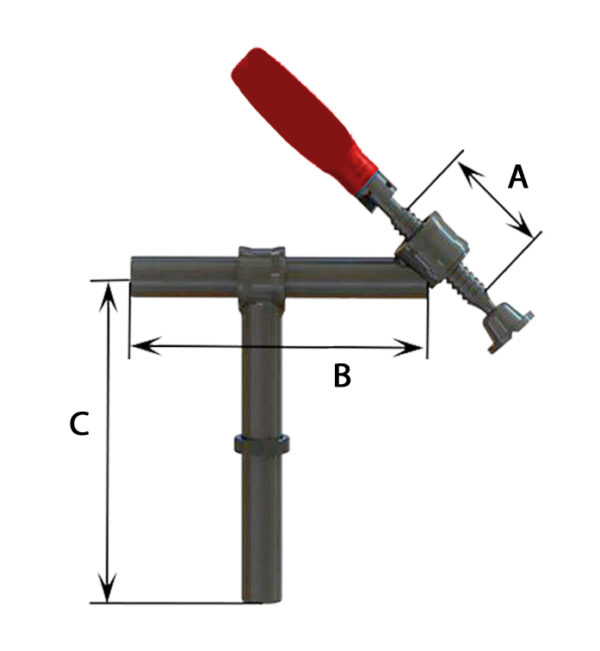

* TJJ series 45 °pipe fixture can precisely clamp the welding parts with inclined angle and can be changed up and down * * The adjustable range of horizontal bar is 55-145 mm * * A regulation ring is added to the vertical tube, which can help the adjustment better. number a b c maximum load stock *

* Ball lock is an ideal fitting for connecting parts on welding equipment, using the connection with different materials and different thickness parts * * QSP28060 effective clamping distance is 45-55mm * * QSP28085 effective clamping distance is 70-80mm * * The O-ring on the positioning shaft acts as a dust-proof, fastening and positioning function. * The movement of the steel ball from the inside to the outside makes the locking force gradually stronger *
