| CAPACITY | 10 Ton |
|---|---|
| DESCRIPTION | Telescopic Hyd Cylinder |
| MIN HEIGHT | 49mm |
| MAX HEIGHT | 74mm |
| STROKE | 25mm |
| LIFTING STAGE | Two Stage |
| BASE SIZE | 83 x 60mm |
| CONNECTOR | HH-ll R2 3/8″-19 Male Half Coupler |
| WEIGHT NETT/GROSS | 1.5/ 1.6kg |
| VOLUME | 0.0006cm |
| PACKING SIZE L X W X H | 150 x 650 x 650mm |
Description
SKU : HJ-280700B
Price per Unit
$180.00 (Exc GST)
$207.00 (Inc GST)
FEATURES:
* This hydraulic Super-Thin hydraulic cylinder is a lightweight low profile design for use in confined spaces
* Baked enamal finish to increase corrosion resistance
* Plunger wiper reduces contamination, extending cylinder life
* Matching pumps: CP-180, CP-630, CP-700, DYB-63A
| Weight | 1.6 kg |
|---|---|
| Dimensions | 0.15 × 0.065 × 0.065 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
HYDRAULIC TELESCOPIC CYLINDER: 10 TON MAX LIFT 385MM
SKU:
HJ-280680
* This telescopic hydraulic cylinder is ideal when there is mimium clearance and a very high lift is required
* Manufactured from high strength alloy steel for durability
* Baked enamal finish to increase corrosion resistance
* Plunger wiper reduces contamination , extending cylinder life
* Matching pump - HHB-700A
HYDRAULIC TELESCOPIC CYLINDER: 30 TON MAX LIFT 566MM
SKU:
HJ-280690B
* This telescopic hydraulic cylinder is ideal when there is mimium clearance and a very high lift is required
* Manufactured from high strength alloy steel for durability
* Baked enamal finish to increase corrosion resistance
* Plunger wiper reduces contamination, extending cylinder life
* Matching pump - HHB-700A
HYDRAULIC CYLINDER: 20T STROKE 11MM
SKU:
HJ-280702
HYDRAULIC CYLINDER: 100T 50MM STROKE
SKU:
HJ-280738
HYDRAULIC CYLINDER: 30T 100MM STROKE
SKU:
HJ-280744
HYDRAULIC CYLINDER: 50T 100MM STROKE
SKU:
HJ-280746
HYDRAULIC CYLINDER: 30T 150MM STROKE
SKU:
HJ-280754

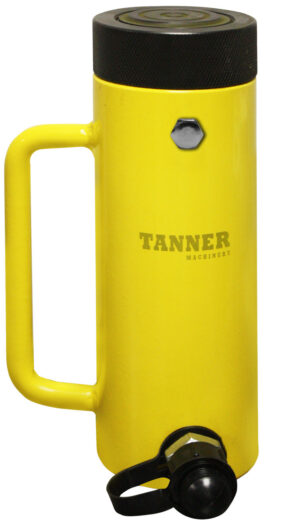

HYDRAULIC CYLINDER: 50T HHYG-50150LS: STROKE 150MM L/NUT
SKU:
HJ-280924
* This hydraulic cylinder comes with carry handle for ease of use
* Comes with safety lock nut to support the load
* Fitted with spring return
* Overflow port prevents piston from being overextended
* Chrome plated pistons prevent ware and corrosion
* Each cylinder has a flat grooved saddle
* Baked enamal finish to increase corrosion resistance
* Plunger wiper reduces contamination, extending cylinder life
* Matching pumps: CP-180, CP-630, CP-700, DYB-63A
