MODEL | HSH-4 X 4000 |
---|---|
CONTROLLER | Estun E-21S + Invertor |
SHEARING CAPACITY | 4.0mm Mild Steel, 2.0mm Stainless |
BLADE LENGTH | 4000mm |
RAKE ANGLE VARIABLE | No |
MAX RAKE ANGLE | |
MIN RAKE ANGLE | 1.5 degree |
HOLDDOWN CLAMPS | 10 |
HOLDING FORCE | 55 psi |
BACK GAUGE | 20.0mm – 900mm |
MOTOR | 7.5Kw 380v 3 Phase |
LENGTH | 4130mm |
WIDTH | 2030mm |
HEIGHT | 1600mm |
WEIGHT NETT/GROSS | 5200kg |
VOLUME | 19,200cm |
Description
SKU : SRH132221
Price per Unit
$39,600.00 (Exc GST)
$45,540.00 (Inc GST)
FEATURES:

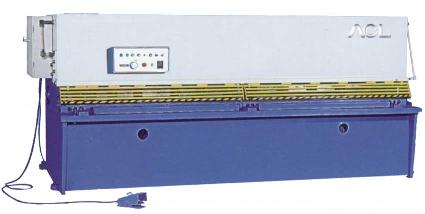

* This Benzel 4.0mm x L4000mm guillotine is the swing beam type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-215 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine
Weight | 5200 kg |
---|---|
Dimensions | 4.8 × 1.8 × 1.85 cm |
Specifications
Description
Reviews (0)
Be the first to review “HYDRAULIC GUILLOTINE: BENZEL 4MM X 4000MM HSH” Cancel reply
Shipping & Delivery
Related products
HYDRAULIC GUILLOTINE: BENZEL 6MM X 2500MM
SKU:
SRH132213
$28,200.00
* Blade gap adjusting dial mounted on side of machine for convenient and accurate alteration for all your material thickness from 0.5 - 4mm.
* This dial is designed so that a straightforward rotation clock or anti clockwise to achieve desired plate thickness.
* Measurement on dial indicates and refers to actual blade gap distance in millimetres.
* CONTROLLER ESTUN E21S.
* Control unit mounted on swivel pendant arm. Transfer balls inserted into work table allowing material to be easily moved.
HYDRAULIC GUILLOTINE: HSH 4MM x 2500MM VARIABLE RAKE
SKU:
SRH132215
$23,500.00
* This Benzel 4.0mm x L2500mm guillotine is the variable rake type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-245 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine *
HYDRAULIC GUILLOTINE: BENZEL 4MM X 3200MM
SKU:
SRH132220
$29,000.00
* This Benzel 4.0mm x L3200mm guillotine is the variable rake type
* Heavy construction with Motorised Back gauge motor is driven with Invertor
* Maximum back gauge travel is 900mm and comes with ball screw for total accuracy
* This machine is fitted with the Estun E-245 controller for easy and effective cutting control
* Fitted with photo sensor protection at the rear of this machine *
HYDRAULIC GUILLOTINE: BENZEL 8MM X 3200MM Swing Beam
SKU:
SRH132225
$42,000.00
HYDRAULIC GUILLOTINE: HSH 16MM X 3200MM VARIABLE RAKE
SKU:
SRH132235
$55,000.00
HYDRAULIC GUILLOTINE: HSH 12MM X 4000MM VARIABLE RAKE
SKU:
SRH132238
$56,000.00
HYDRAULIC GUILLOTINE: CNC 4MM X 2500MM VARIABLE RAKE
SKU:
SRH132244
$0.00
HYDRAULIC GUILLOTINE: CNC 6MM X 3200MM VARIABLE RAKE
SKU:
SRH132246
$48,200.00
